| Material: | PVC/EPDM |
| Material Notes: | PVC body with EPDM rubber flap. For outdoor applications it is recommended this valve is protected from direct exposure to UV radiation. |
| Pressure Rating: | PN3 (3Bar/43PSI) |
| Pressure Rating Notes: | Pressure rating is at 20°C. As temperatures elevate, the pressure rating will be de-rated. This valve is designed for low pressure applications primarily to prevent backwater. |
| Operating Temperature: | 4°C to 40°C |
| Standard Seal: | EPDM |
| Other Technical Specifications: |
|
* ASTM D 1784
* ANSI/ASME A112.14.1
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material PVC/EPDM
Pressure PN3 (3Bar/43PSI)
On Sale Item F
Certification & Standards * ASTM D 1784
* ANSI/ASME A112.14.1
Material Notes PVC body with EPDM rubber flap. For outdoor applications it is recommended this valve is protected from direct exposure to UV radiation.
Pressure Rating PN3 (3Bar/43PSI)
Pressure Rating Notes Pressure rating is at 20°C. As temperatures elevate, the pressure rating will be de-rated. This valve is designed for low pressure applications primarily to prevent backwater.
Operating Temperature 4°C to 40°C
Standard Seal EPDM
Other Technical Specifications * PVC Type I
* Grade 1 material conforming to ASTM D 1784
* All valves shall have external arrow flow indicator.

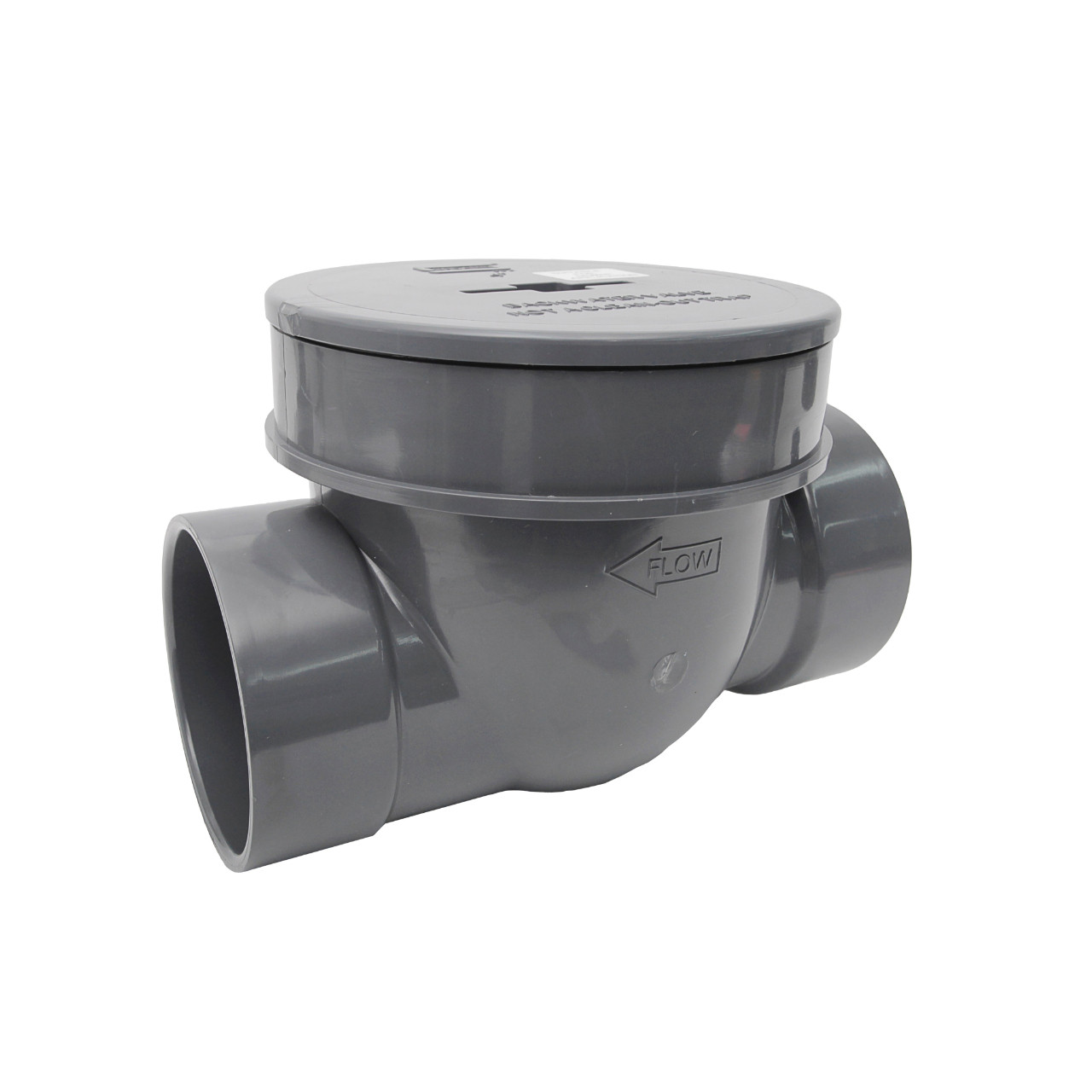

Thumbnail Name PVC Ind. Swing Non Return Valve SOC EPDM
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/PVC Swing No-Return Valve Brochure.pdf
