| Material: | DZR Brass |
| Pressure Rating: | Water: PN25 (25Bar/362PSI/2500kPa) |
| Pressure Rating Notes: | Maximum pressure |
| Operating Temperature: | 1°C to 95°C |
| Standard Seal: | PTFE |
| Other Technical Specifications: |
|
* Tested and certified to AS 1628
* Watermark approved
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material DZR Brass
Pressure Water: PN25 (25Bar/362PSI/2500kPa)
On Sale Item F
Certification & Standards * Tested and certified to AS 1628
* Watermark approved
Pressure Rating Water: PN25 (25Bar/362PSI/2500kPa)
Pressure Rating Notes Maximum pressure
Operating Temperature 1°C to 95°C
Standard Seal PTFE
Other Technical Specifications * Full bore
* 100% pressure tested

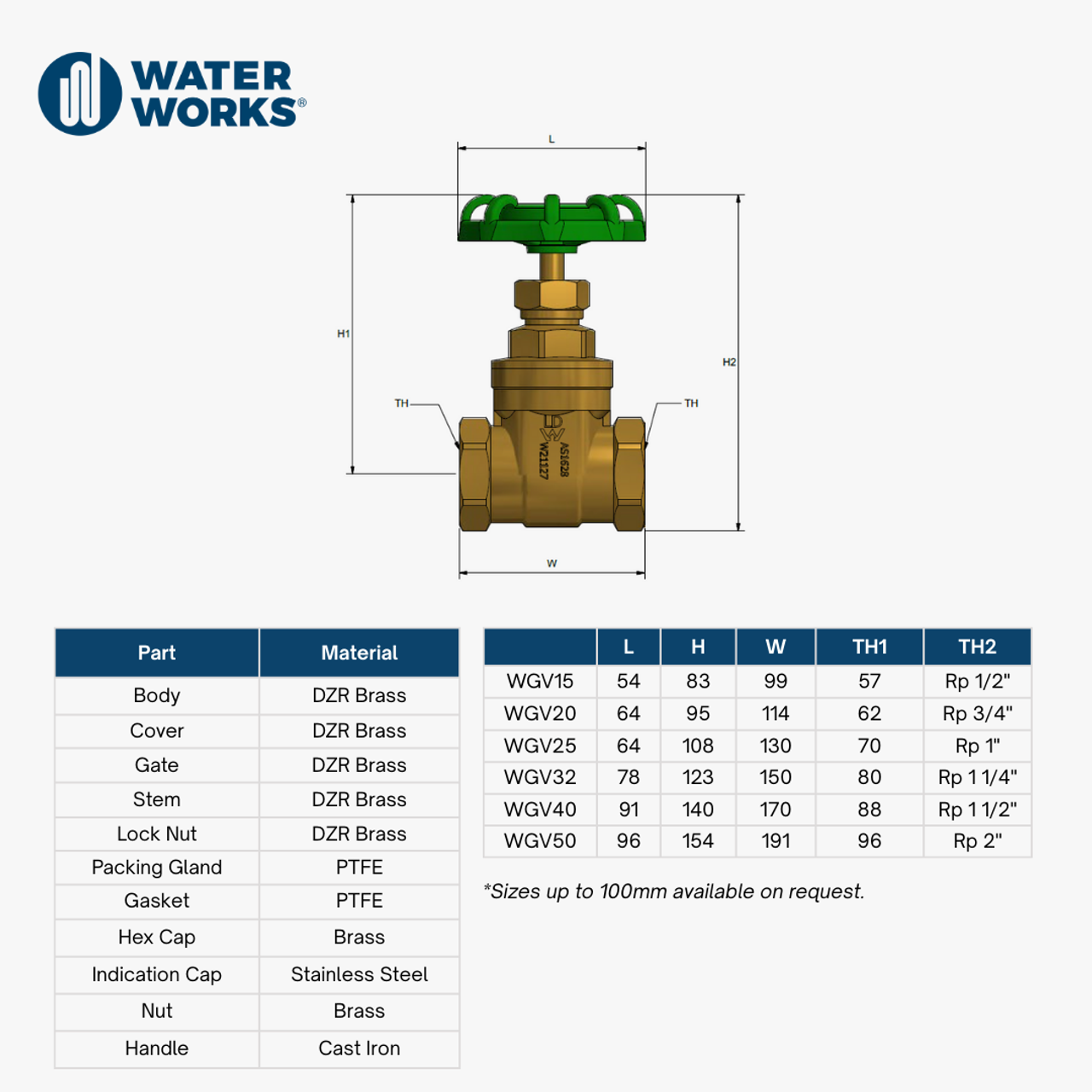

Other Technical Specifications 2 * Body: DZR Brass
* Cover: DZR Brass
* Gate: DZR Brass
* Stem: DZR Brass
* Lock Nut: DZR Brass
* Packing Gland: PTFE
* Gasket: PTFE
* Hex Cap: Stainless Steel
* Indication Cap: Stainless Steel
* Nut: Stainless Steel
* Handle: Cast Iron

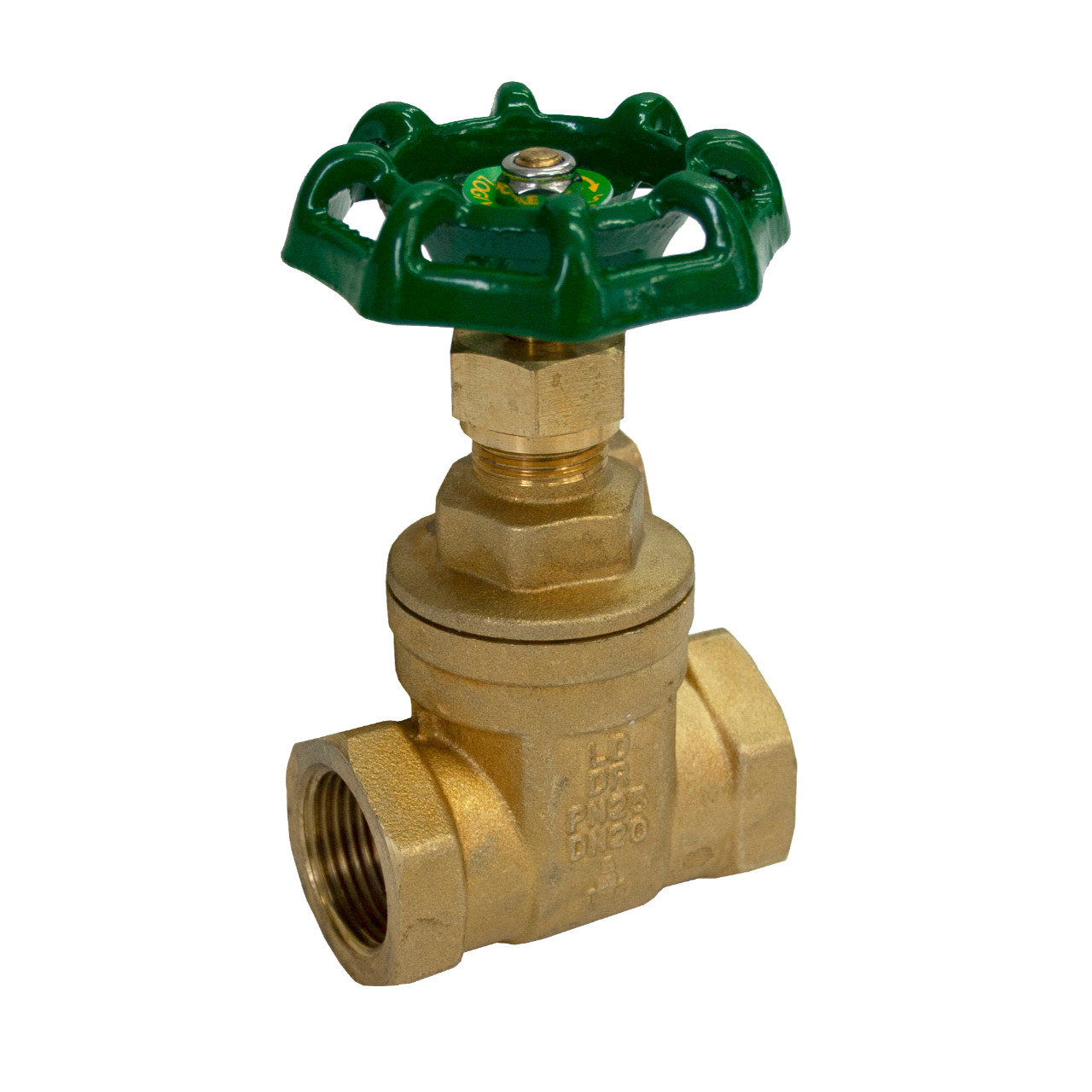

Thumbnail Name Watermark DZR Brass Gate Valve
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW Brass Valves Brochure.pdf
