Material: | 316 Stainless Steel |
Pressure Rating Notes: | Pressure rating will vary depending on the tube thickness. Please refer to the Technical Manual for further details. Allowable stress value between -200°F and 1000°F (-28.90°C ~ 37.80°C) is 19,500 PSI. Safety factor is 4 (Ultimate tensile strength is 70,000 PSI) |
Other Technical Specifications: |
|
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material 316 Stainless Steel
On Sale Item F
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW VIS-LOK Brochure.pdf
Technical Manual https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW VIS-LOK Brochure.pdf
Certification & Standards * API
* HSB Global Standards
* ABS* Lloyds Register
* DNV
* Germanischer Lloyd
* Bureau Veritas
* TUV NORD
* ASME
* ABSA
* RDW
* EN10204 3.1
* NACE
Installation Guide 1 https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW VIS-LOK Brochure.pdf
Pressure Rating Notes Pressure rating will vary depending on the tube thickness. Please refer to the Technical Manual for further details.
Pressure Rating Notes 2 Allowable stress value between -200°F and 1000°F (-28.90°C ~ 37.80°C) is 19,500 PSI. Safety factor is 4 (Ultimate tensile strength is 70,000 PSI)
Other Technical Specifications Red check ring and blue identification ring indicate imperial sizing. Orange check ring and green identification ring indicate metric sizing

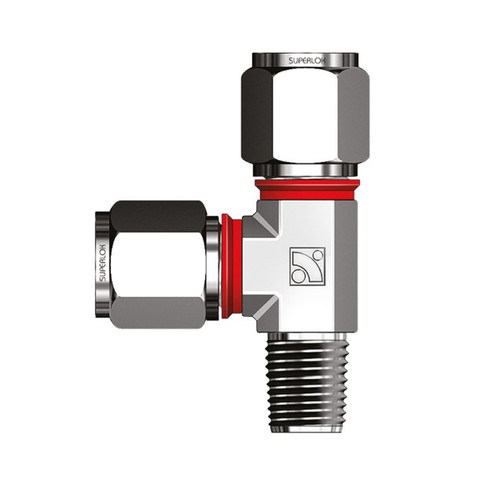

Thumbnail Name Union Male Run Tee - Imperial Tube x NPT
Product Care Guide https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW VIS-LOK Brochure.pdf
