| Material: | 1. BODY Engineered Glass Reinforced Nylon 2. SEAL EPDM Rubber 3. NUT & BOLT 316 Stainless Steel 4. REINFORCING RING 316 Stainless Steel |
| Material Notes: | 1. Dry Molybdenum coating on nuts to prevent galling 2. E-Lip seal that can withstand pressure and vacuum 3. Body is coloured white to identify pipe type. |
| Pressure Rating: | 16 bar at 20°C |
| Pressure Rating Notes: | Pressure rating must be de-rated if used above 20°C |
| Operating Temperature: | -40°C to 70°C |
| Standard Seal: | EPDM rubber |
| Standard Seal Notes: | E-Lip seal that can withstand pressure and vacuum. 40mm and 50mm are o-ring type |
Videos
Videos Hide Videos Show Videos
Custom Field
Material 1. BODY Engineered Glass Reinforced Nylon 2. SEAL EPDM Rubber 3. NUT & BOLT 316 Stainless Steel 4. REINFORCING RING 316 Stainless Steel
Pressure 16 bar at 20°C
On Sale Item F
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW 4N Tapping Bands Brochure.pdf
Technical Manual https://waterworksnz.co.nz/content/product_downloads/Technical Information/Catalogue Technical Information/WW Technical Tapping Saddles & Bands.pdf
Installation Guide 1 https://waterworksnz.co.nz/content/product_downloads/Installation Guide/4N Tapping Band Installation Instructions.pdf
Material Notes 1. Dry Molybdenum coating on nuts to prevent galling 2. E-Lip seal that can withstand pressure and vacuum 3. Body is coloured white to identify pipe type.
Pressure Rating 16 bar at 20°C
Pressure Rating Notes Pressure rating must be de-rated if used above 20°C
Operating Temperature -40°C to 70°C
Standard Seal EPDM rubber
Standard Seal Notes E-Lip seal that can withstand pressure and vacuum. 40mm and 50mm are o-ring type

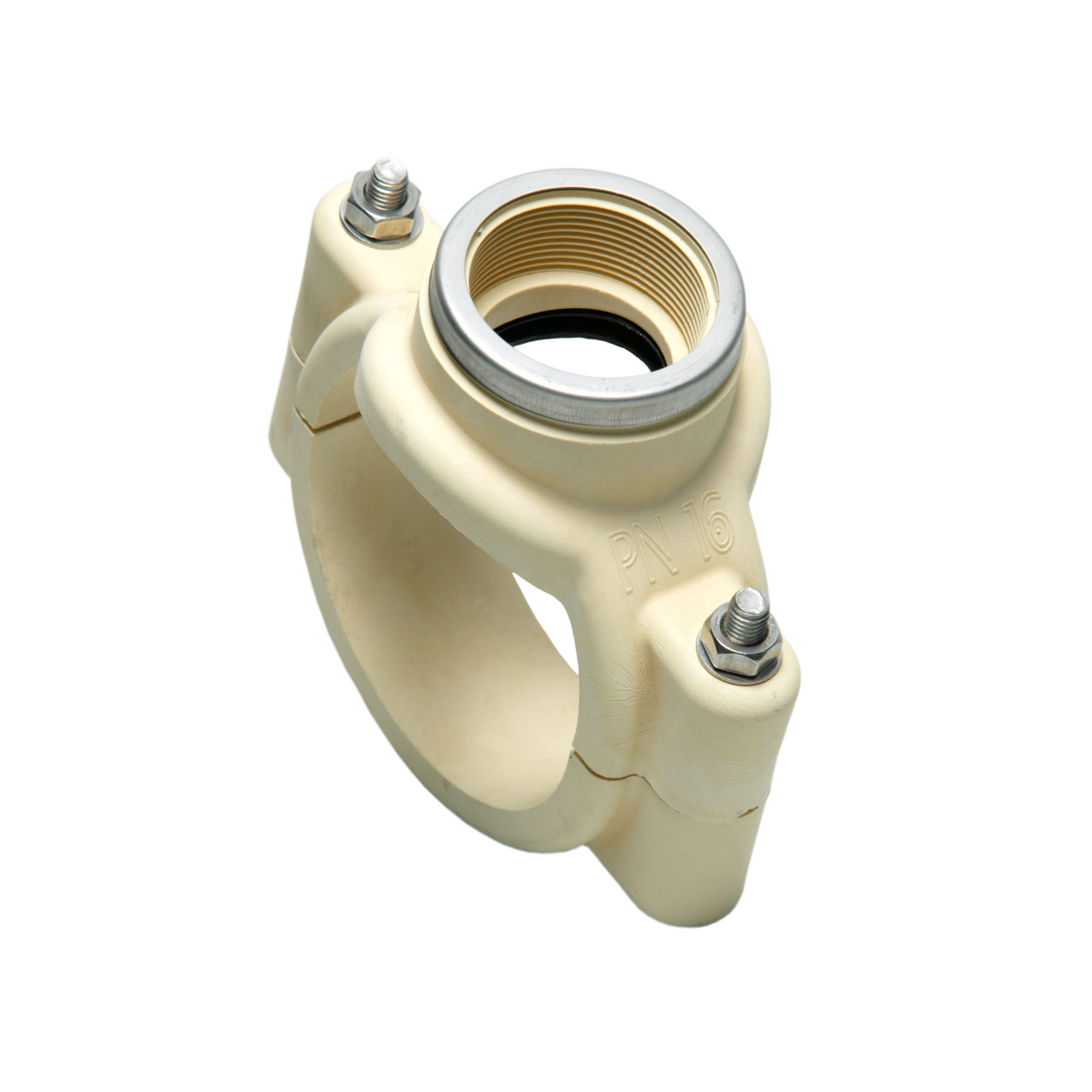

Thumbnail Name Tapping Band - series 1
4N Watercare Approval /content/product_downloads/Certification/4N Watercare Approval.pdf
4N Watermark Approval /content/product_downloads/Certification/4N Watermark certificate.pdf
Wsaa Product Appraisal https://store-2l8fmz6dxc.mybigcommerce.com/content/product_downloads/Certification/WSAA%20Product%20Appraisal%20Certificate.pdf
