| Material: | PVC/Van Stone |
| Material Notes: | To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used. |
| Pressure Rating: | 150 PSI |
| Pressure Rating Notes: | Pressure rating applies at 23°C. |
| Operating Temperature: | 4°C to 40°C |
| Standard Seal Temperature Notes: | Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind, as temperatures increase , thermal expansion will increase and bracket spacing will decrease. The pressure capability will also need to be de-rated. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details. |
* ASTM D 1784
* ASTM D 2467
* CL 150 as per ANSI Standard B16.5
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material PVC/Van Stone
Pressure 150 PSI
On Sale Item F
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW Spears Brochure.pdf
Technical Manual https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW Spears Brochure.pdf
Certification & Standards * ASTM D 1784
* ASTM D 2467
* CL 150 as per ANSI Standard B16.5
Installation Guide 1 https://waterworksnz.co.nz/content/product_downloads/Installation Guide/WW PVC Cement Set & Cure Times.pdf
Material Notes To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used.
Pressure Rating 150 PSI
Pressure Rating Notes Pressure rating applies at 23°C.
Operating Temperature 4°C to 40°C
Standard Seal Temperature Notes Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind, as temperatures increase
Standard Seal Temperature Notes 2 , thermal expansion will increase and bracket spacing will decrease. The pressure capability will also need to be de-rated. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details.

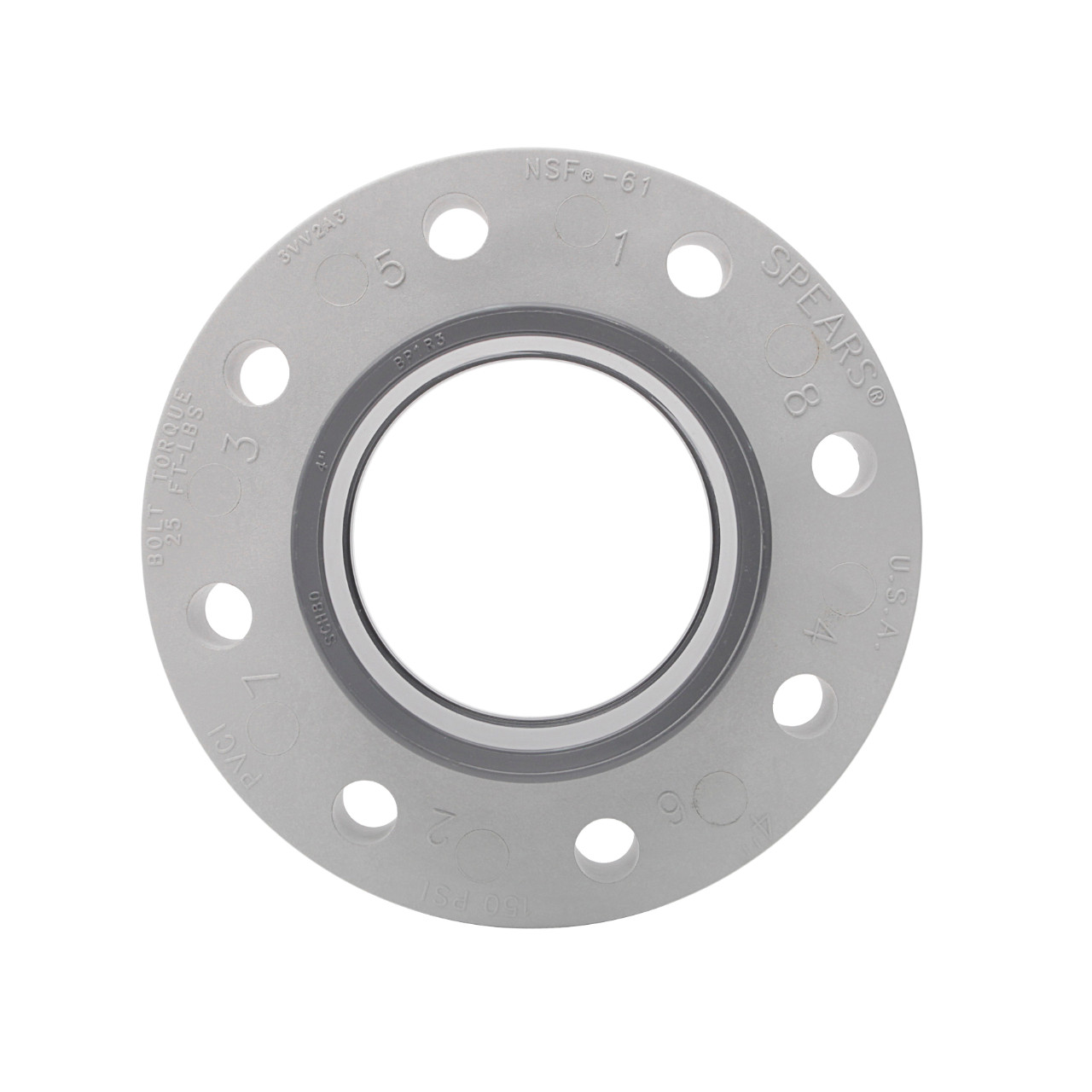

Thumbnail Name Van Stone Flange ANSI 150 SOC
