| Material: | PVC |
| Material Notes: | To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used. |
| Pressure Rating: | PN10 (10Bar/145PSI/1000kPa) in open position and PN5 (5Bar/73PSI/500kPa) back pressure (closed position) |
| Pressure Rating Notes: | Pressure rating is at 20°C and may de-rate as temperatures elevate. |
| Operating Temperature: | 4°C to 40°C |
| Standard Seal: | EPDM |
| Other Technical Specifications: |
|
* ASTM D 1784
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material PVC
Pressure PN10 (10Bar/145PSI/1000kPa) in open position and PN5 (5Bar/73PSI/500kPa) back pressure (closed position)
On Sale Item F
Certification & Standards * ASTM D 1784
Material Notes To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used.
Pressure Rating PN10 (10Bar/145PSI/1000kPa) in open position and PN5 (5Bar/73PSI/500kPa) back pressure (closed position)
Pressure Rating Notes Pressure rating is at 20°C and may de-rate as temperatures elevate.
Operating Temperature 4°C to 40°C
Standard Seal EPDM
Other Technical Specifications * EPDM Seat
* Weighted Disc
* Directional flow indicated by arrow shown on valve body
* Suitable for vertical (flow upwards) or horizontal installation

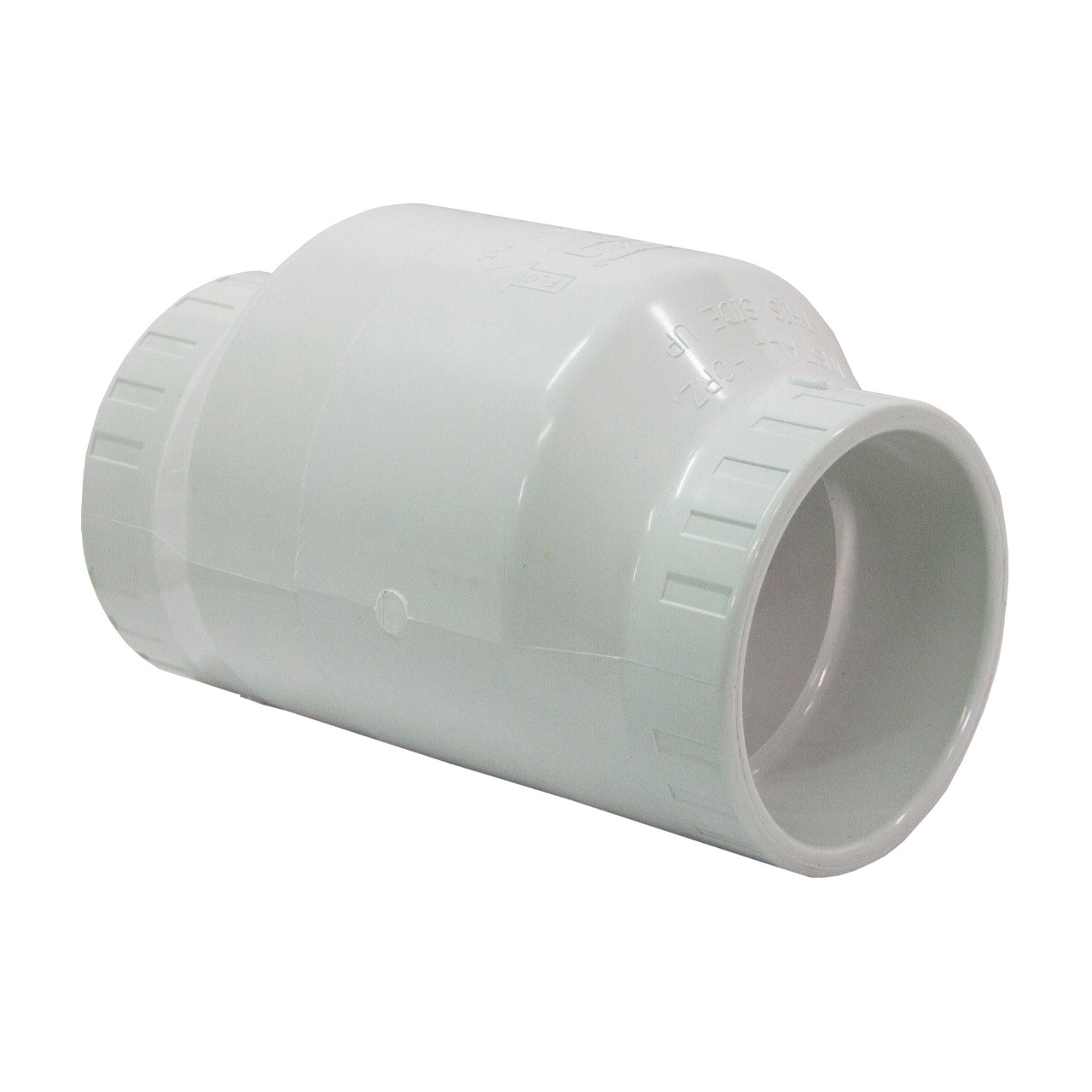

Thumbnail Name PVC Swing Check Valve
