| Material: | uPVC |
| Material Notes: | To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used. |
| Pressure Rating: | As specified |
| Pressure Rating Notes: | The pressure rating will vary depending on the size and fitting configuration, please contact the Waterworks technical department for specific advise. In addition, the pressure rating must be adjusted if the fittings are to be used at elevated temperatures above 20°C. Refer to PVC Pressure Pipe & Fittings Technical Manual for temperature de-rating factors. |
| Operating Temperature: | 4°C to 40°C |
| Standard Seal Temperature Notes: | Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind, as temperatures increase thermal expansion will increase and bracket spacing will decrease. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details. |
* AS/NZS 1477
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material uPVC
Pressure As specified
On Sale Item F
Brochure https://waterworksnz.co.nz/content/product_downloads/Technical Information/Catalogue Technical Information/WW Technical PVC Pressure Pipe & Fittings.pdf
Technical Manual https://waterworksnz.co.nz/content/product_downloads/Technical Information/Catalogue Technical Information/WW Technical PVC Pressure Pipe & Fittings.pdf
Certification & Standards * AS/NZS 1477
Installation Guide 1 https://waterworksnz.co.nz/content/product_downloads/Technical Information/Catalogue Technical Information/WW Technical PVC Pressure Pipe & Fittings.pdf
Installation Guide 2 https://waterworksnz.co.nz/content/product_downloads/Installation Guide/WW PVC Cement Set & Cure Times.pdf
Material Notes To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used.
Pressure Rating As specified
Pressure Rating Notes The pressure rating will vary depending on the size and fitting configuration, please contact the Waterworks technical department for specific advise.
Operating Temperature 4°C to 40°C
Standard Seal Temperature Notes Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures.
Standard Seal Temperature Notes 2 Also, please keep in mind, as temperatures increase thermal expansion will increase and bracket spacing will decrease. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details.

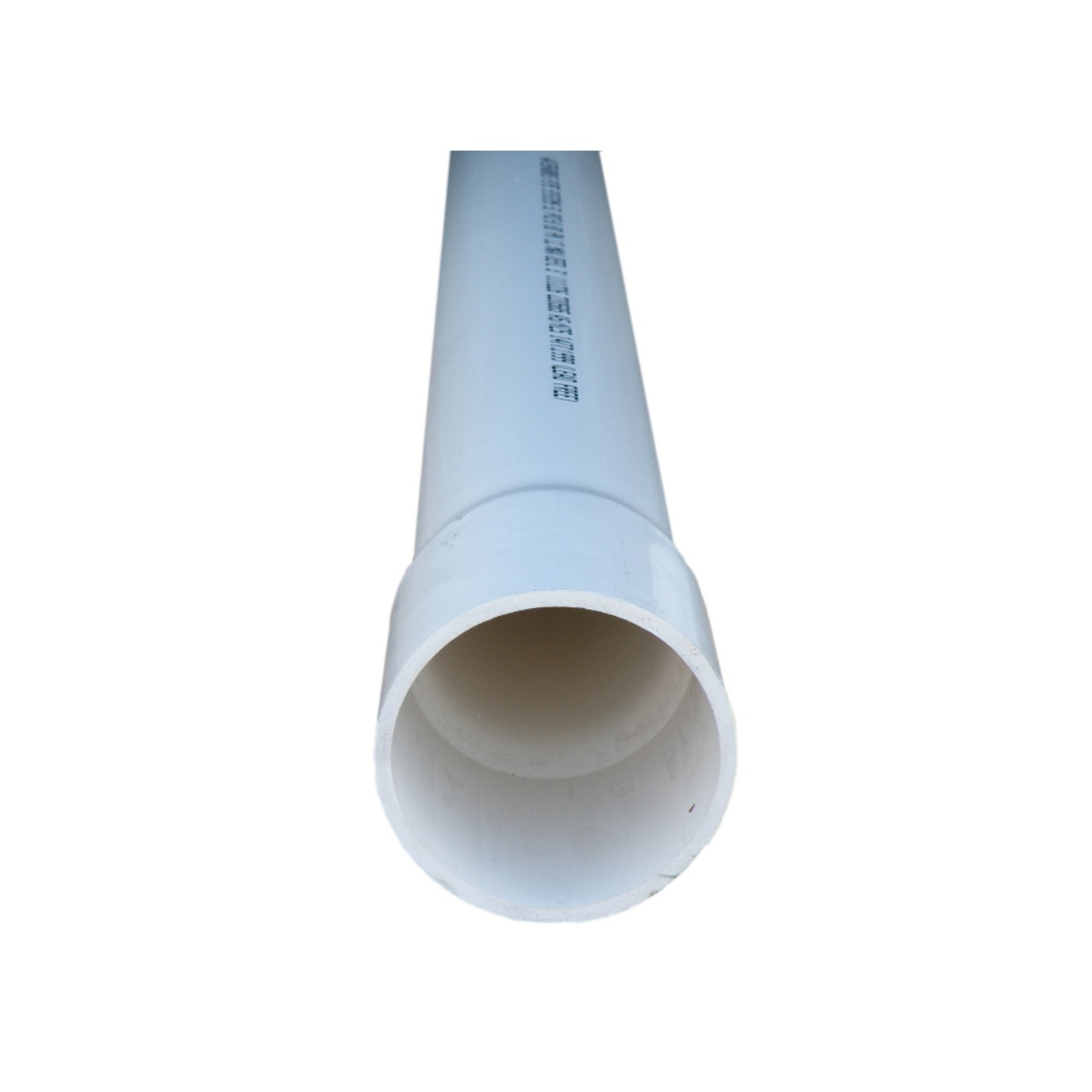

Thumbnail Name Pressure Pipe - 6m White
Product Care Guide https://waterworksnz.co.nz/content/product_downloads/Installation Guide/5 design tips to extend the life of PVC pipework.pdf
Pressure Rating Notes 2 In addition, the pressure rating must be adjusted if the fittings are to be used at elevated temperatures above 20°C. Refer to PVC Pressure Pipe & Fittings Technical Manual for temperature de-rating factors.
