| Material: | Carbon Steel |
| Material Notes: | Europress carbon steel fittings have an electrolytically galvanised zinc coating. Reccomended for use in dry, clean, and non-corrosive indoor applications. |
| Pressure Rating: | 16 Bar (232 PSI) |
| Pressure Rating Notes: | Oil/Lubricant applications are approved up to 40 Bar (580 PSI). Conditions apply. |
| Standard Seal: | FKM (Viton) |
| Standard Seal Temperature: | -20°C to +120°C |
| Standard Seal Temperature Notes: | Can handle spikes up to 180°C. |
| Alternate Seal: | EPDM |
| Alternate Seal Temperature: | -20°C to +85°C |
| Alternate Seal Temperature Notes: | Can handle temperature spikes up to 120°C. |
* UNI EN 10305
* VdS-CEA4001
* AON
* ASME B31.3
* UN1 EN ISO 9001/2000
Certification & Standards
Certificate of Compliance - ASME B31.3
Videos
Videos Hide Videos Show Videos
Custom Field
Material Carbon Steel
Pressure 16 Bar (232 PSI)
On Sale Item F
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW Europress Brochure.pdf
Technical Manual https://waterworksnz.co.nz/content/product_downloads/Technical Information/Catalogue Technical Information/WW Technical Europress Carbon Steel.pdf
Certification & Standards * UNI EN 10305
* VdS-CEA4001
* AON
* ASME B31.3
* UN1 EN ISO 9001/2000
Dimensional Drawing https://waterworksnz.co.nz/content/product_downloads/Dimensional Drawings/Europress Carbon Steel/UMU-DD.jpg
Declaration of Durability https://waterworksnz.co.nz/content/product_downloads/Certification/Europress Declaration of Durability.pdf
Certificate of Approval https://waterworksnz.co.nz/content/product_downloads/Certification/Europress Certificate of Approval CS Lube Oil 40B.pdf
Declaration of Durability - 25 Years https://waterworksnz.co.nz/content/product_downloads/Certification/Europress Declaration of Durability.pdf
Certificate of Compliance - ASME B313 https://waterworksnz.co.nz/content/product_downloads/Certification/Europress Compliance B31.3.pdf
Certificate of Approval - Oil & Lubricant 40 Bar (Carbon Steel) https://waterworksnz.co.nz/content/product_downloads/Certification/Europress Certificate of Approval CS Lube Oil 40B.pdf
AON Approval https://waterworksnz.co.nz/content/product_downloads/Certification/Europress - AON certificate.pdf
Installation Guide 1 https://waterworksnz.co.nz/content/product_downloads/Installation Guide/WW Europress Install Cards.pdf
Material Notes Europress carbon steel fittings have an electrolytically galvanised zinc coating. Reccomended for use in dry, clean, and non-corrosive indoor applications.
Pressure Rating 16 Bar (232 PSI)
Pressure Rating Notes Oil/Lubricant applications are approved up to 40 Bar (580 PSI). Conditions apply.
Standard Seal FKM (Viton)
Standard Seal Temperature -20°C to +120°C
Standard Seal Temperature Notes Can handle spikes up to 180°C.
Alternate Seal EPDM
Alternate Seal Temperature -20°C to +85°C
Alternate Seal Temperature Notes Can handle temperature spikes up to 120°C.

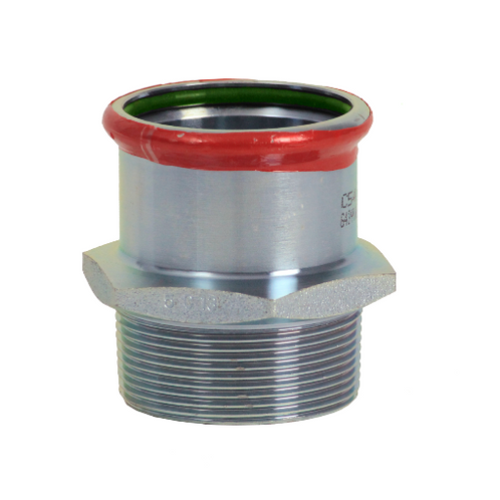

Thumbnail Name BSP Male Adaptor - Viton Seal
