| Material: | Carbon Steel/Brass Nut |
| Material Notes: | Europress carbon steel fittings have an electrolytically galvanised zinc coating. |
| Pressure Rating: | 16 Bar (232 PSI) |
| Pressure Rating Notes: | Europress can be used up to 40 Bar (580 PSI) on approved applications. Oil/Lubricant applications are approved up to 40 Bar (580 PSI). Conditions apply. |
| Standard Seal: | EPDM |
| Standard Seal Notes: | Both the press connection o-ring and union seal come standard as EPDM. |
| Standard Seal Temperature: | -20°C to +85°C |
| Standard Seal Temperature Notes: | Can handle temperature spikes up to 120°C. |
| Alternate Seal: | FKM (Viton) |
| Alternate Seal Temperature: | -20°C to +120°C |
| Alternate Seal Temperature Notes: | Can handle temperature spikes up to 180°C. Should you require FKM (Viton) seals simply add these to your order and make a note on your order stating you require FKM (Viton) seals and we will change these prior to despatch. Both the press connection o-ring and union seal come standard are available in FKM (Viton). |
* UNI EN 10305
* VdS-CEA4001
* AON
* ASME B31.3
* UN1 EN ISO 9001/2000
Certification & Standards
Certificate of Compliance - ASME B31.3
Videos
Videos Hide Videos Show Videos
Custom Field
Material Carbon Steel/Brass Nut
Pressure 16 Bar (232 PSI)
On Sale Item F
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW Europress Brochure.pdf
Technical Manual https://waterworksnz.co.nz/content/product_downloads/Technical Information/Catalogue Technical Information/WW Technical Europress Carbon Steel.pdf
Certification & Standards * UNI EN 10305
* VdS-CEA4001
* AON
* ASME B31.3
* UN1 EN ISO 9001/2000
Dimensional Drawing https://waterworksnz.co.nz/content/product_downloads/Dimensional Drawings/Europress Carbon Steel/USC-DD.jpg
Declaration of Durability https://waterworksnz.co.nz/content/product_downloads/Certification/Europress Declaration of Durability.pdf
Certificate of Approval https://waterworksnz.co.nz/content/product_downloads/Certification/Europress Certificate of Approval CS Lube Oil 40B.pdf
Declaration of Durability - 25 Years https://waterworksnz.co.nz/content/product_downloads/Certification/Europress Declaration of Durability.pdf
Certificate of Compliance - ASME B313 https://waterworksnz.co.nz/content/product_downloads/Certification/Europress Compliance B31.3.pdf
Certificate of Approval - Oil & Lubricant 40 Bar (Carbon Steel) https://waterworksnz.co.nz/content/product_downloads/Certification/Europress Certificate of Approval CS Lube Oil 40B.pdf
AON Approval https://waterworksnz.co.nz/content/product_downloads/Certification/Europress - AON certificate.pdf
Installation Guide 1 https://waterworksnz.co.nz/content/product_downloads/Installation Guide/WW Europress Install Cards.pdf
Material Notes Europress carbon steel fittings have an electrolytically galvanised zinc coating.
Pressure Rating 16 Bar (232 PSI)
Pressure Rating Notes Europress can be used up to 40 Bar (580 PSI) on approved applications. Oil/Lubricant applications are approved up to 40 Bar (580 PSI). Conditions apply.
Standard Seal EPDM
Standard Seal Notes Both the press connection o-ring and union seal come standard as EPDM.
Standard Seal Temperature -20°C to +85°C
Standard Seal Temperature Notes Can handle temperature spikes up to 120°C.
Alternate Seal FKM (Viton)
Alternate Seal Temperature -20°C to +120°C
Alternate Seal Temperature Notes Can handle temperature spikes up to 180°C. Should you require FKM (Viton) seals simply add these to your order and make a note on your order stating you require FKM (Viton) seals and we will change these prior to despatch.
Alternate Seal Temperature Notes 2 Both the press connection o-ring and union seal come standard are available in FKM (Viton).

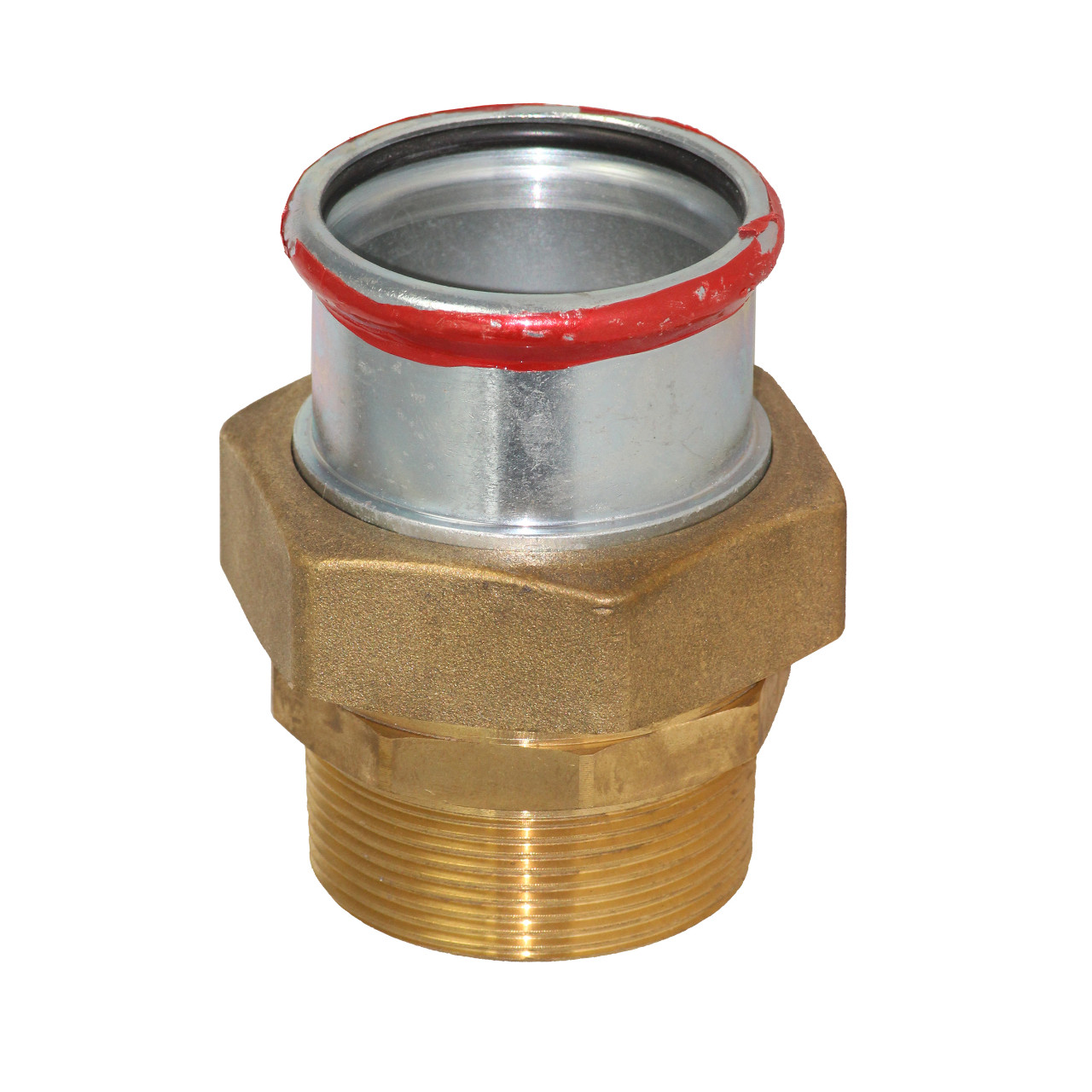

Thumbnail Name Male Adaptor Union
