| Material: | Polypropylene |
| Pressure Rating: | 20mm to 25mm 125 PSI @ 21°C 32mm to 50mm 100 PSI @ 21°C 65mm to 80mm 75 PSI @ 21°C 100mm 50 PSI @ 21°C |
| Pressure Rating Notes: | Must be de-rated above 21°C |
| Operating Temperature: | -10°C to 80°C |
| Standard Seal: | Buna |
| Standard Seal Notes: | Other seal options available on request |
| Standard Seal Temperature: | -40°C to 100°C |
| Alternate Seal: | Neoprene, EPDM, Viton, Teflon |
| Alternate Seal Temperature: | Neoprene -50°C to 100°C EPDM -50°C to 135°C Viton -28°C to 260°C Teflon -40°C to 120°C |
| Alternate Seal Temperature Notes: | Must be de-rated above 21°C |
Videos
Videos Hide Videos Show Videos
Custom Field
Material Polypropylene
Pressure 20mm to 25mm 125 PSI @ 21°C 32mm to 50mm 100 PSI @ 21°C 65mm to 80mm 75 PSI @ 21°C 100mm 50 PSI @ 21°C
On Sale Item F
Pressure Rating 20mm to 25mm 125 PSI @ 21°C 32mm to 50mm 100 PSI @ 21°C 65mm to 80mm 75 PSI @ 21°C 100mm 50 PSI @ 21°C
Pressure Rating Notes Must be de-rated above 21°C
Operating Temperature -10°C to 80°C
Standard Seal Buna
Standard Seal Notes Other seal options available on request
Standard Seal Temperature -40°C to 100°C
Alternate Seal Neoprene, EPDM, Viton, Teflon
Alternate Seal Temperature Neoprene -50°C to 100°C EPDM -50°C to 135°C Viton -28°C to 260°C Teflon -40°C to 120°C
Alternate Seal Temperature Notes Must be de-rated above 21°C

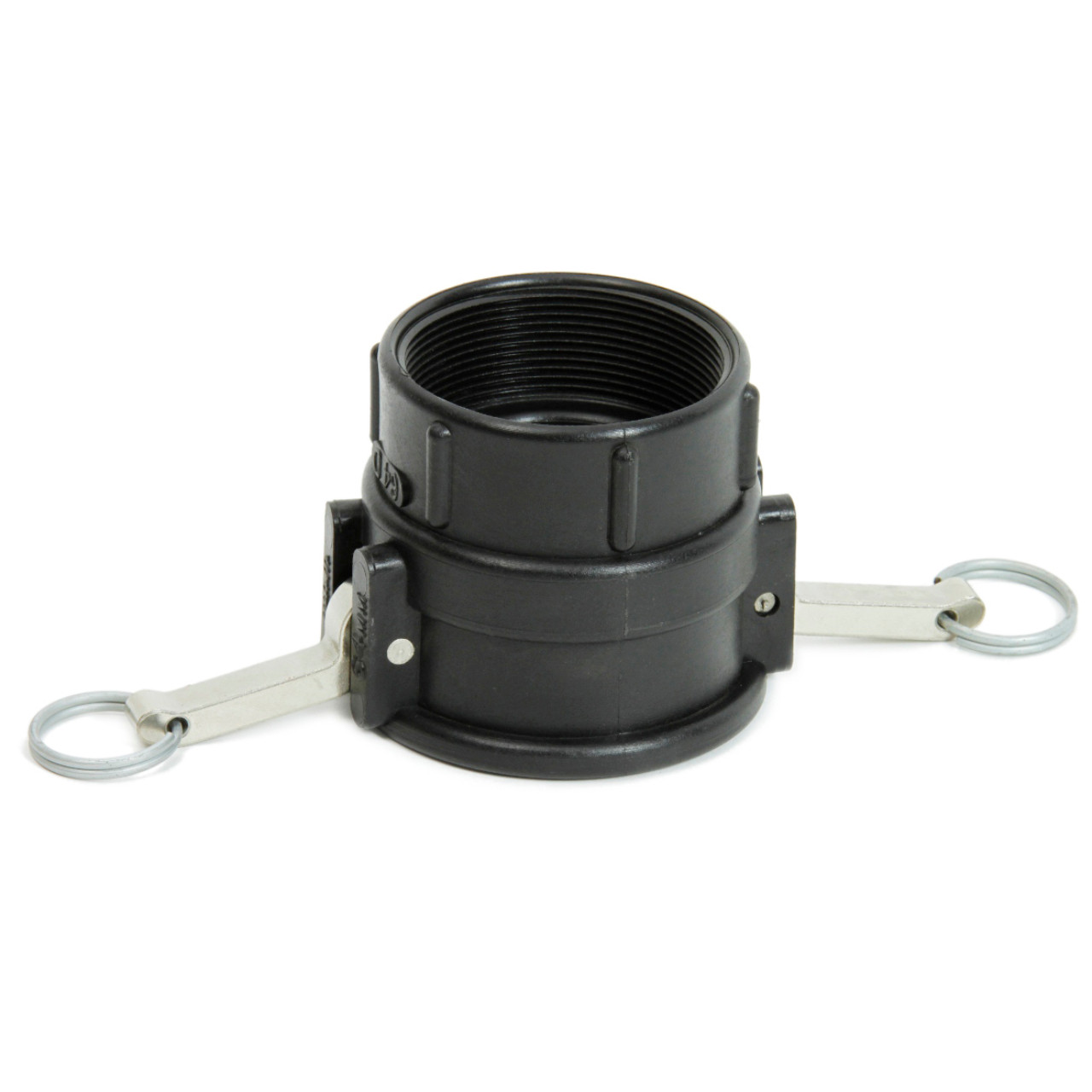

Thumbnail Name Polypropylene - Female Coupler (D)
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/Camlocks Brochure Digital.pdf
