| Material: | Ductile Iron |
| Material Notes: | Ductile iron body with a 2-component epoxy powder coating |
| Pressure Rating: | PN16 (16Bar/230PSI/1600kPa) |
| Operating Temperature: | Up to 120°C |
| Standard Seal: | EPDM |
| Standard Seal Notes: | Suitable for hot water, steam, alcohols, coolants, acids and bases |
| Standard Seal Temperature: | Max. 120°C |
| Other Technical Specifications: |
|
* BS5155
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material Ductile Iron
Pressure PN16 (16Bar/230PSI/1600kPa)
On Sale Item F
Certification & Standards * BS5155
Material Notes Ductile iron body with a 2-component epoxy powder coating
Pressure Rating PN16 (16Bar/230PSI/1600kPa)
Operating Temperature Up to 120°C
Standard Seal EPDM
Standard Seal Notes Suitable for hot water, steam, alcohols, coolants, acids and bases
Standard Seal Temperature Max. 120°C
Other Technical Specifications * 316 stainless steel disc
* 316 stainless steel fastners
* Suits universal bolt pattern
* Lockable lever handle with 10 position stainless steel notch plate

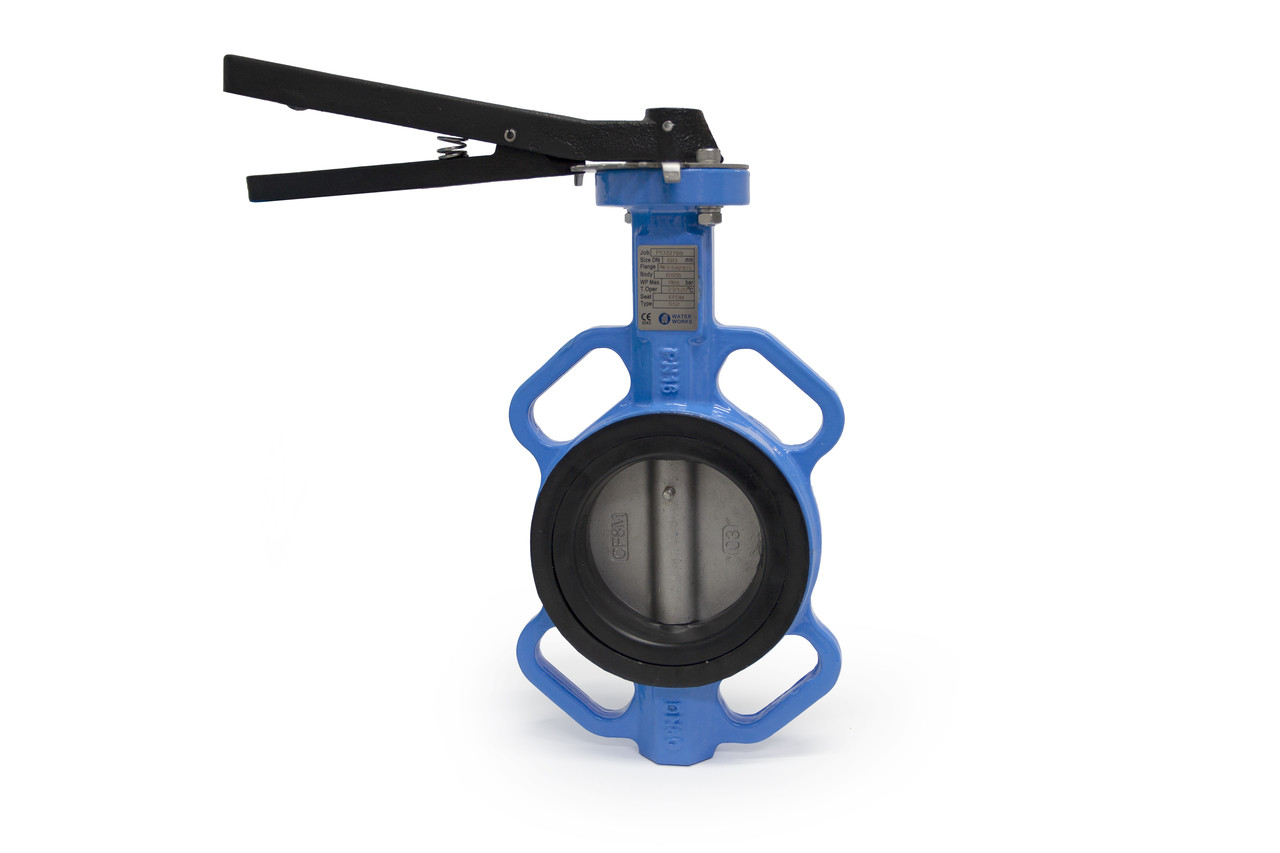

Thumbnail Name Butterfly Valve Wafer - Lever
Brochure https://waterworksnz.co.nz/content/Brochure/butterfly-valve-technical-manual-2023.pdf
