| Material: | uPVC |
| Material Notes: | Some deterioration may occur when exposed to UV radiation. |
| Pressure Rating: | Sizes 15-50mm - PN10 (150PSI) |
| Pressure Rating Notes: | The pressure rating must be adjusted if the fittings are to be used at elevated temperatures above 20°C. Refer to PVC Pressure Pipe & Fittings Technical Manual for temperature de-rating factors. |
| Operating Temperature: | 4°C to 40°C |
| Standard Seal: | EPDM |
| Standard Seal Temperature: | Refer to operating temperature |
| Standard Seal Temperature Notes: | Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. |
| Alternate Seal: | Available on an indent basis. Please contact our team. |
| Other Technical Specifications: |
|
Videos
Custom Field
Material uPVC
Pressure Sizes 15-50mm - PN10 (150PSI)
On Sale Item F
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/Air Relief Valves Brochure DIGITAL 12-4-23.pdf
Material Notes Some deterioration may occur when exposed to UV radiation.
Pressure Rating Sizes 15-50mm - PN10 (150PSI)
Pressure Rating Notes The pressure rating must be adjusted if the fittings are to be used at elevated temperatures above 20°C. Refer to PVC Pressure Pipe & Fittings Technical Manual for temperature de-rating factors.
Operating Temperature 4°C to 40°C
Standard Seal EPDM
Standard Seal Temperature Refer to operating temperature
Standard Seal Temperature Notes Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures.
Alternate Seal Available on an indent basis. Please contact our team.
Other Technical Specifications * Gasket - EPDM
* O-Ring - EPDM
* Thread - BSPT

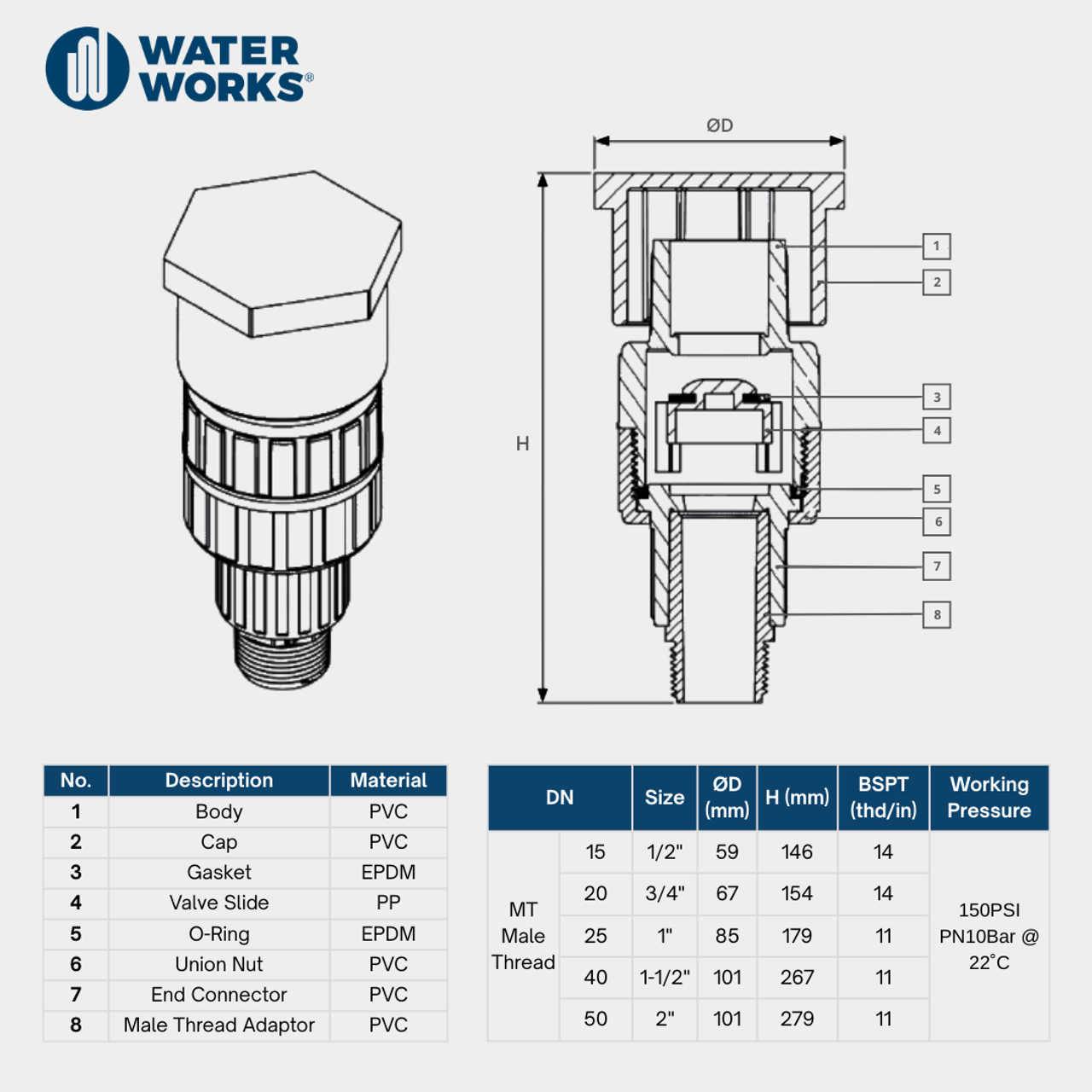

Thumbnail Name uPVC Air Relief Valve
