| Material: | DZR Brass (Nickel Plated) |
| Pressure Rating: | Water: PN25 (25Bar/362PSI/2500kPa), Gas: PN21 (21Bar/304PSI/2100kPa) |
| Pressure Rating Notes: | Maximum pressure |
| Operating Temperature: | 1°C to 95°C |
| Standard Seal: | PTFE |
| Other Technical Specifications: |
|
* Tested and certified to WMTS012
* Watermark and AGA approved
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material DZR Brass (Nickel Plated)
Pressure Water: PN25 (25Bar/362PSI/2500kPa), Gas: PN21 (21Bar/304PSI/2100kPa)
On Sale Item F
Certification & Standards * Tested and certified to WMTS012
* Watermark and AGA approved
Pressure Rating Water: PN25 (25Bar/362PSI/2500kPa), Gas: PN21 (21Bar/304PSI/2100kPa)
Pressure Rating Notes Maximum pressure
Operating Temperature 1°C to 95°C
Standard Seal PTFE
Other Technical Specifications * Full bore
* 100% pressure tested
* Blow proof spindle

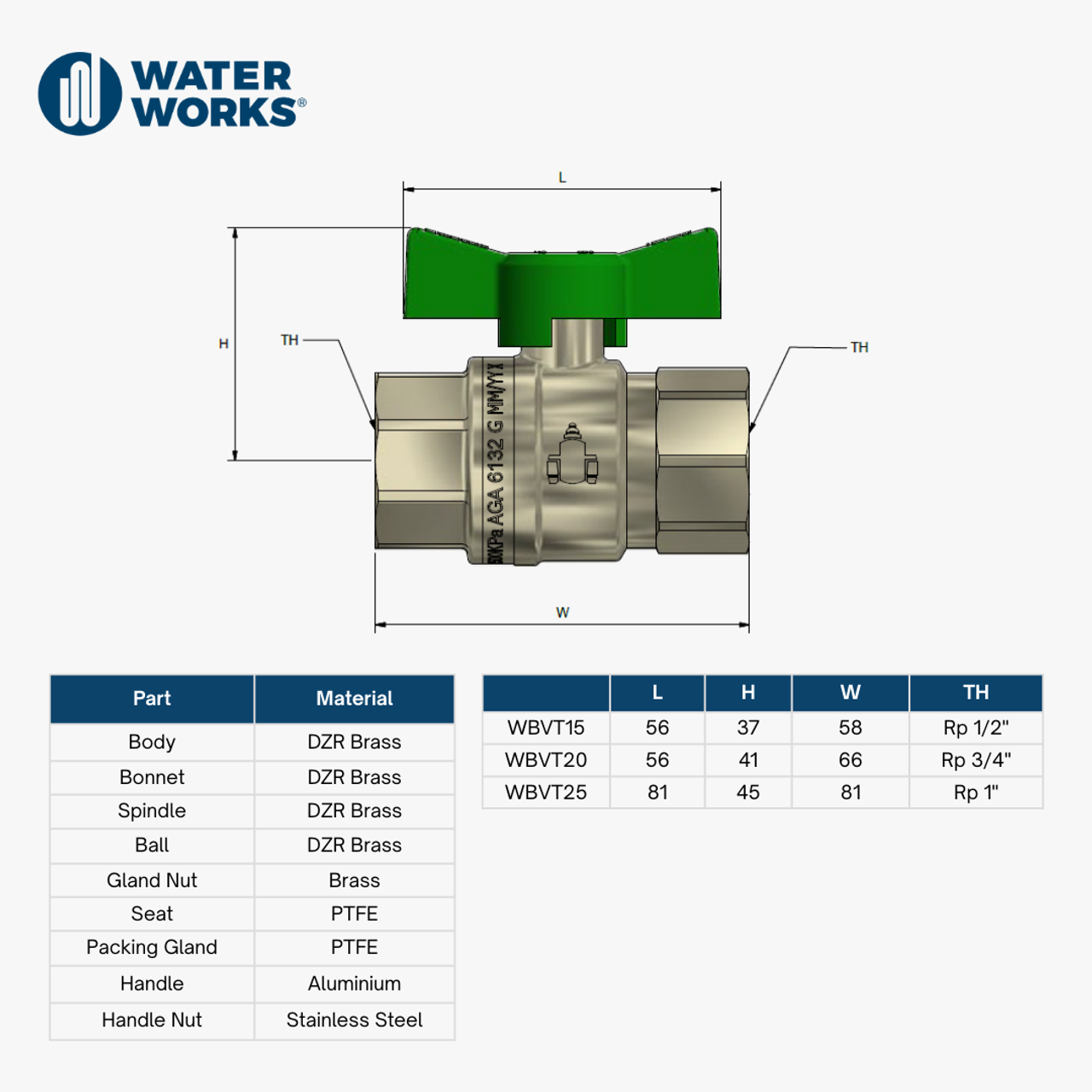

Other Technical Specifications 2 * Body: DZR Brass
* Seal: PTFE
* Ball: DZR Brass
* Bonnet: DZR Brass
* Spindle: DZR Brass
* Handle: Aluminium
* Lock Nut: Stainless Steel
* Gland Nut: Brass

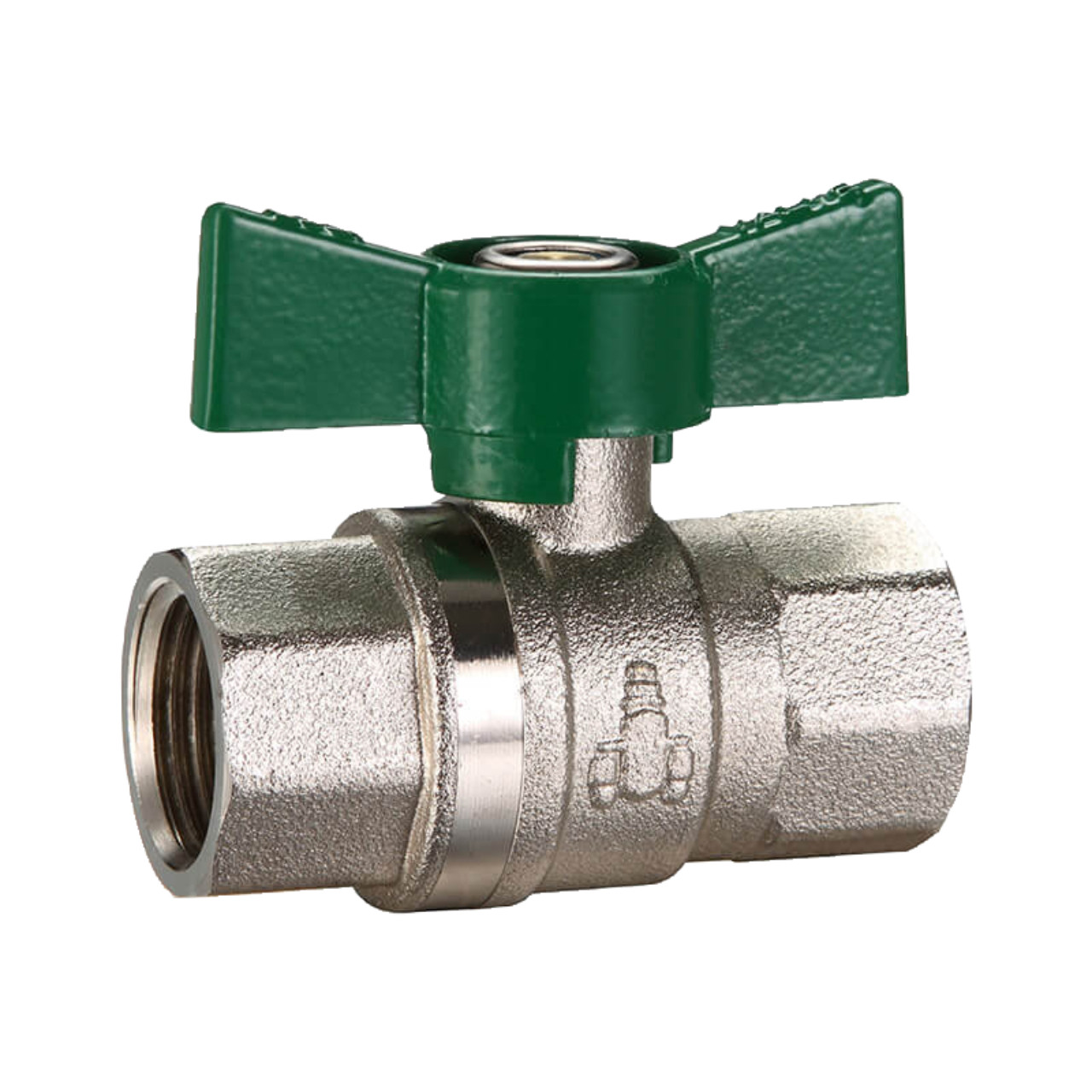

Thumbnail Name Watermark DZR Brass Ball Valve T-Handle
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW Brass Valves Brochure.pdf
