| Material: | Ductile Iron |
| Material Notes: | Ductile iron body with a 2-component epoxy powder coating |
| Standard Seal: | FKM (Viton) |
| Standard Seal Temperature: | Max. 180°C |
| Alternate Seal Temperature Notes: | Suitable for hot water applications including boiler lines and heating systems, mild to medium grade chemical lines and hydrocarbons. |
| Other Technical Specifications: |
|
Videos
Custom Field
Material Ductile Iron
On Sale Item F
Brochure https://waterworksnz.co.nz/content/Brochure/butterfly-valve-technical-manual-2023.pdf
Material Notes Ductile iron body with a 2-component epoxy powder coating
Standard Seal FKM (Viton)
Standard Seal Temperature Max. 180°C
Alternate Seal Temperature Notes Suitable for hot water applications including boiler lines and heating systems, mild to medium grade chemical lines and hydrocarbons.
Other Technical Specifications * 316 stainless steel disc
* 316 stainless steel fasteners
* Table E threaded stud pattern to suit Table E flanges
* Lockable lever handle with 10 position stainless steel notch plate

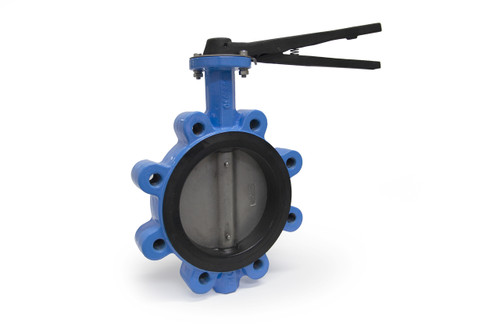

Thumbnail Name Butterfly Valve Lugged - Lever
