Variable Gibault Coupling

What are Variable Gibault Couplings?

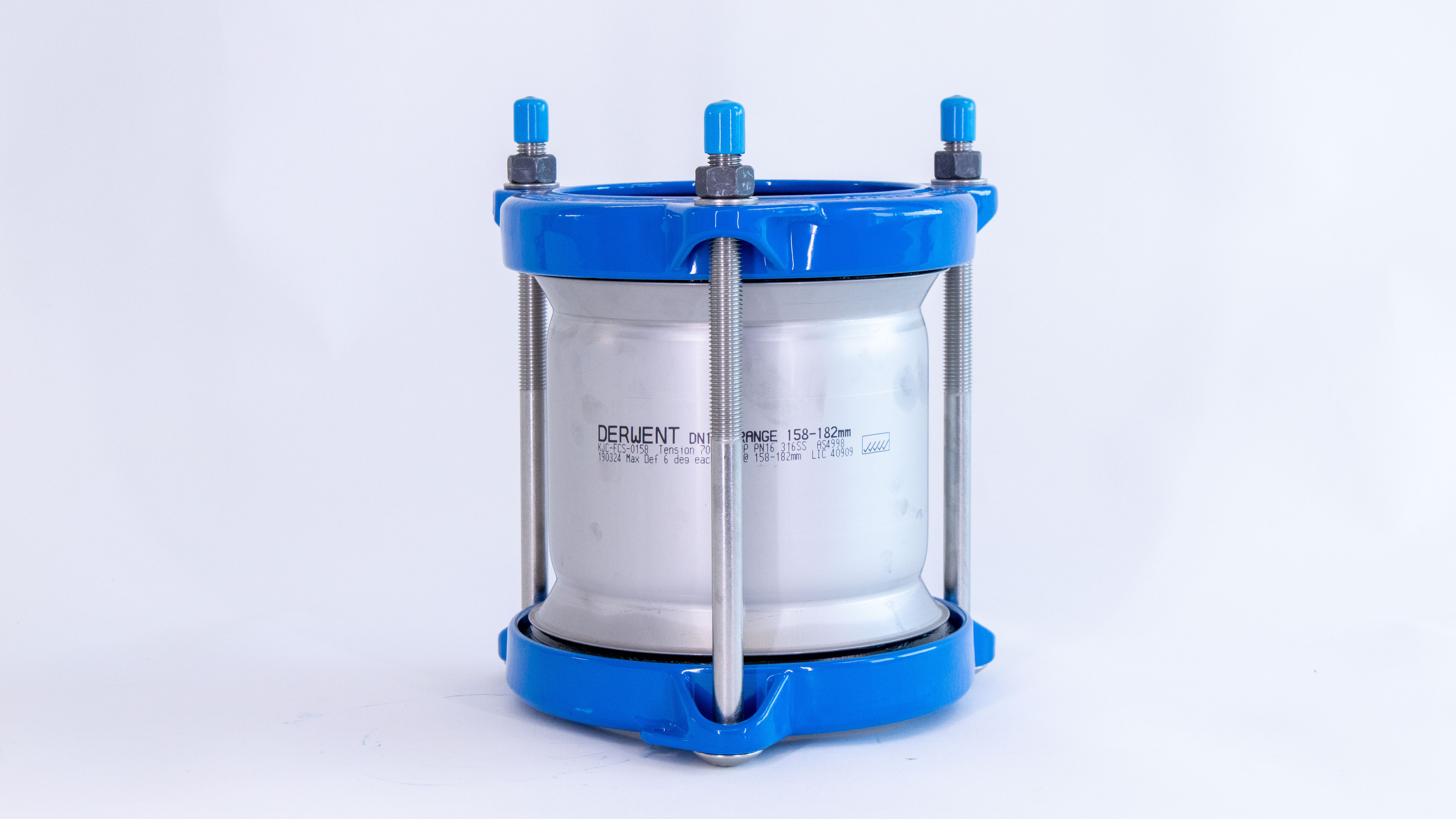

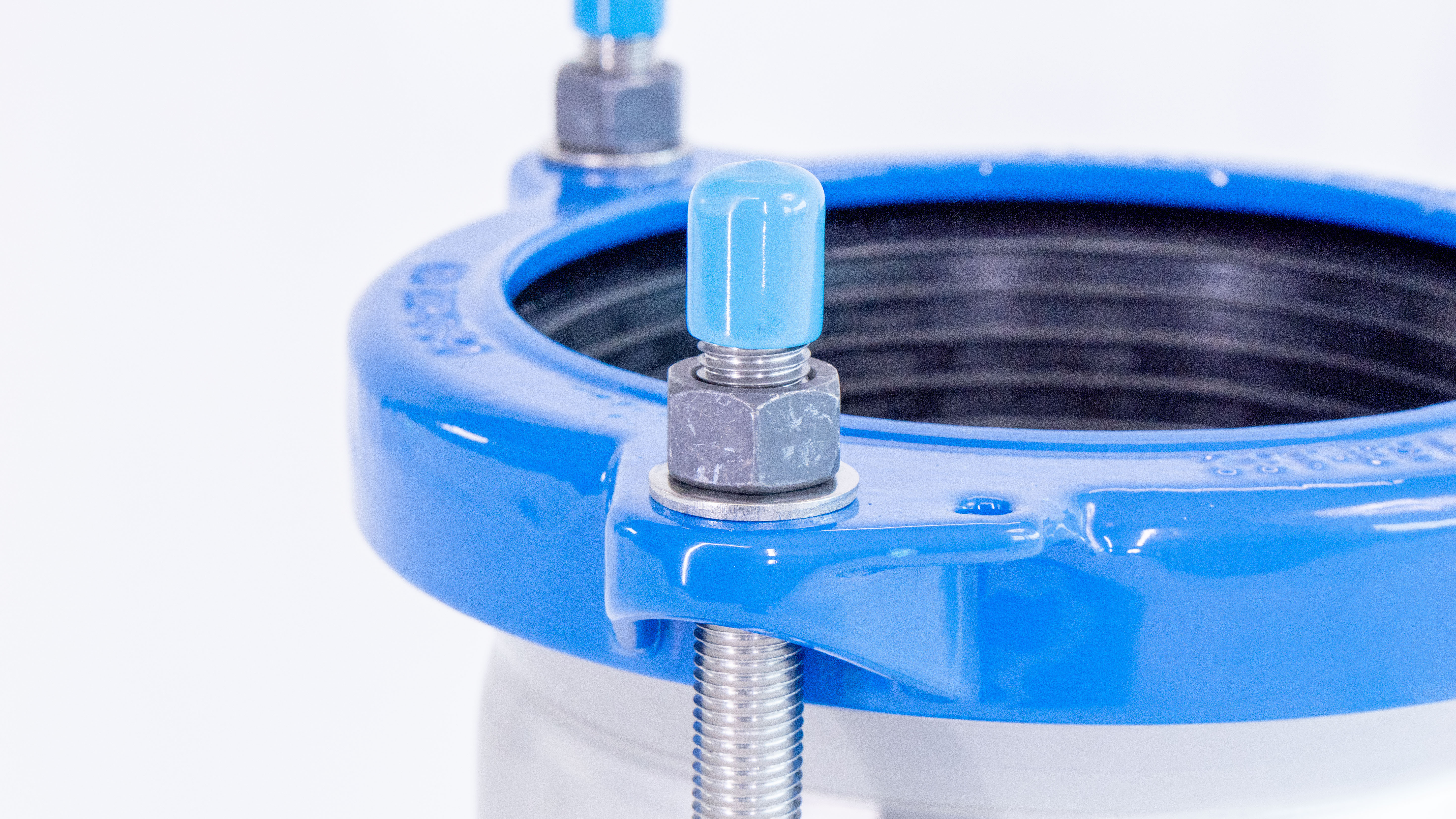

Variable Gibault Couplings are a fast and easy way of connecting to pipes even with differing outsie diameters or materials. They are able to join two sections of pipe with an OD variance of up to 24mm. The stainless steel body and fusion coated Ductile Iron flanges give the gibault couplings superior corrosion resistance. The convex barrel allows for angular deflection to be accommodated when joining two pipes. The use of Gibault couplings can reduce pipeline downtime and provides a permanent pipeline repair solution.

Technical Specifications

1. Sizes: 80mm to 300mm

2. Temperature Range: -10°C to 60°C

3. Max. Pressure Rating: 1600 kPa (DN80 - DN300)

3. Deflection:

DN80 - DN150: 6° each end on range of coupling
DN200 - DN250: 3° each end on range of coupling
DN300: 1.5° each end on range of coupling.


Variable Gibault Couplings are a fast and easy way of connecting two pipes even with differing outside diameters or materials. They can reduce pipeline downtime and provides a permanent pipeline repair solution.

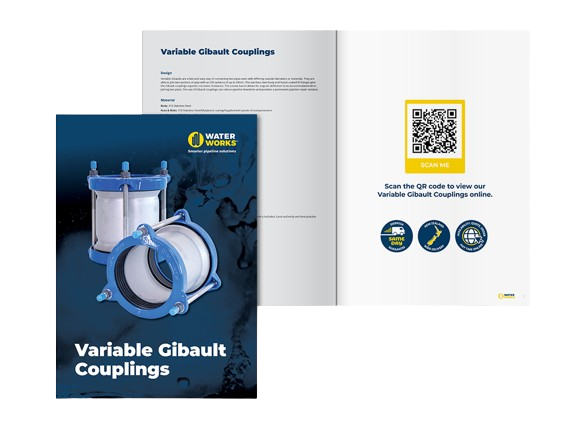

Discover the Variable Gibault Couplings brochure and learn more about this product, its specifications, recommended installation distance and more.




Watch the Specification Video

Variable Gibaults facilitates quick repairs minimising downtime and allowing for easy installation, making it ideal for emergency situations. This coupling is ideal for various applications, ensuring reliable performance in pipeline repairs and maintenance projects, and ensuring a secure seal. Let’s have a closer look at the specifications of this product in the specification video!
