| Material: | PVC |
| Material Notes: | To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used. Valve handles will stiffen and become brittle after extended exposure to UV radiation. |
| Pressure Rating: | Working Pressure: PN10 (10Bar/145PSI/1000kPa) |
| Pressure Rating Notes: | Maximum Pressure: PN15 (15Bar/217PSI/1500kPa) Pressure rating is at 20°C. As temperatures increase the pressure rating will be de-rated. |
| Operating Temperature: | 4°C to 40°C |
| Standard Seal: | EPDM |
| Other Technical Specifications: |
|
* AS/NZS 1477
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material PVC
Pressure Working Pressure: PN10 (10Bar/145PSI/1000kPa)
On Sale Item F
Certification & Standards * AS/NZS 1477
Material Notes To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used.
Material Notes 2 Valve handles will stiffen and become brittle after extended exposure to UV radiation.
Pressure Rating Working Pressure: PN10 (10Bar/145PSI/1000kPa)
Pressure Rating Notes Maximum Pressure: PN15 (15Bar/217PSI/1500kPa)
Pressure Rating Notes 2 Pressure rating is at 20°C. As temperatures increase the pressure rating will be de-rated.
Operating Temperature 4°C to 40°C
Standard Seal EPDM
Other Technical Specifications * Body: PVC
* Seat: EPDM
* O-ring: EPDM
* Ball: uPVC
* Handle: ABS
* Screw: Nickel Plated Steel
* Cap: ABS

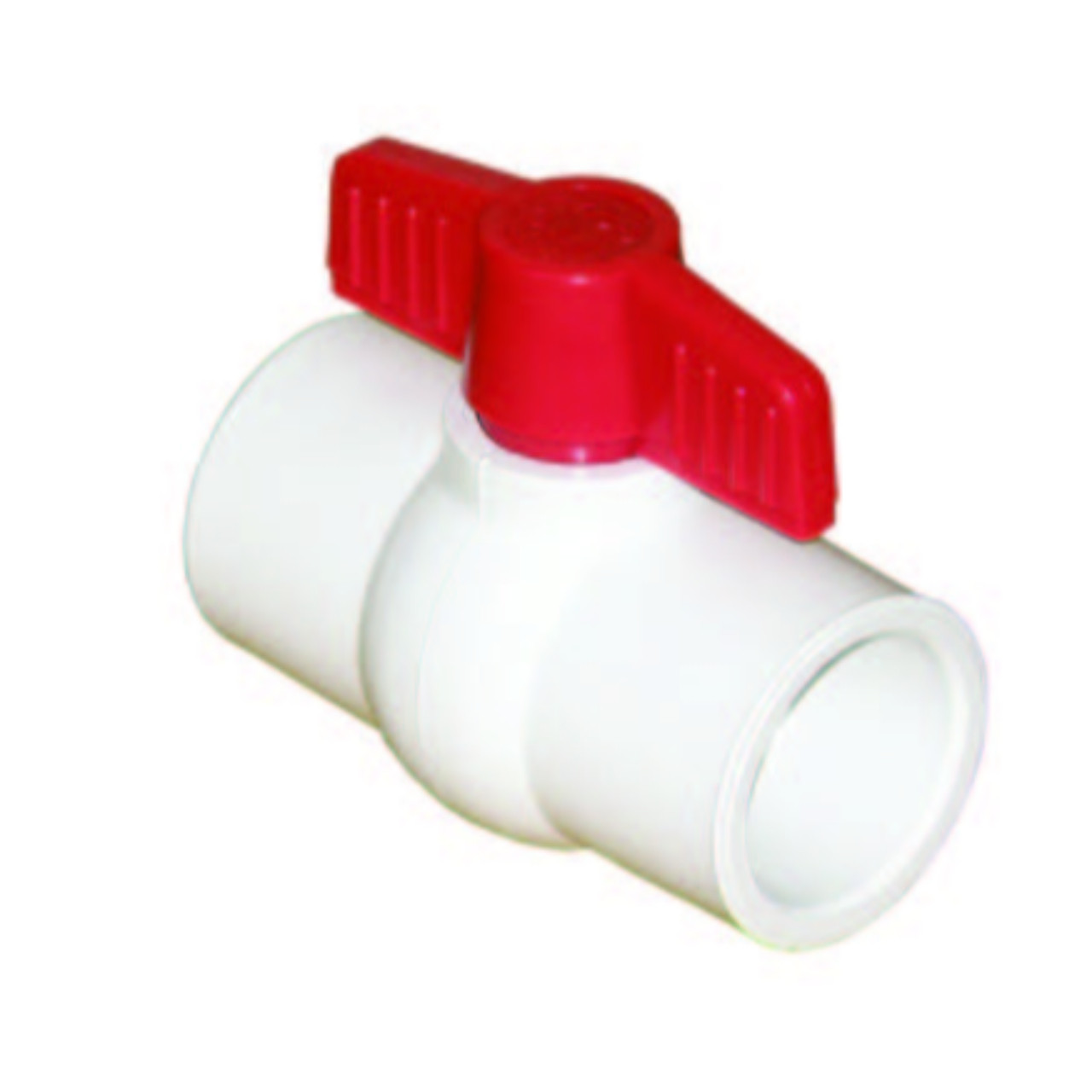

Thumbnail Name PVC Ball Valve SWJ
