| Material: | uPVC |
| Material Notes: | To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used. Valve handles will stiffen and become brittle after extended exposure to UV radiation. |
| Pressure Rating: | PN16 (16Bar/232PSI/1600kPa) for Sizes 15mm to 50mm, PN10 (10Bar/145PSI/1000kPa) for Sizes 65mm to 100mm. |
| Pressure Rating Notes: | Pressure rating is at 20°C. As temperatures increase the pressure rating will be de-rated. |
| Operating Temperature: | 4°C to 40°C |
| Standard Seal: | EPDM |
| Other Technical Specifications: |
|
Videos
Videos Hide Videos Show Videos
Custom Field
Material uPVC
Pressure PN16 (16Bar/232PSI/1600kPa) for Sizes 15mm to 50mm, PN10 (10Bar/145PSI/1000kPa) for Sizes 65mm to 100mm.
On Sale Item F
Material Notes To protect PVC from deterioration from UV radiation, PVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with PVC. Oil-based paints should not be used.
Material Notes 2 Valve handles will stiffen and become brittle after extended exposure to UV radiation.
Pressure Rating PN16 (16Bar/232PSI/1600kPa) for Sizes 15mm to 50mm, PN10 (10Bar/145PSI/1000kPa) for Sizes 65mm to 100mm.
Pressure Rating Notes Pressure rating is at 20°C. As temperatures increase the pressure rating will be de-rated.
Operating Temperature 4°C to 40°C
Standard Seal EPDM
Other Technical Specifications * Handle: uPVC
* Stem: uPVC
* Body: uPVC
* Union End: uPVC
* Union Nut: uPVC
* Ball: uPVC
* Sealing Bush: uPVC
* Ball Seat: PTFE
* Union O-ring: EPDM
* O-ring Sealing Bush: EPDM
* O-ring Ball Seat: EPDM
* O-ring Stem:EPDM
Other Technical Specifications 2 * Directional flow marked by arrow on valve body
* Handle can be detached
* Valve can be unassembled from one end for servicing of the ball and valve inside.

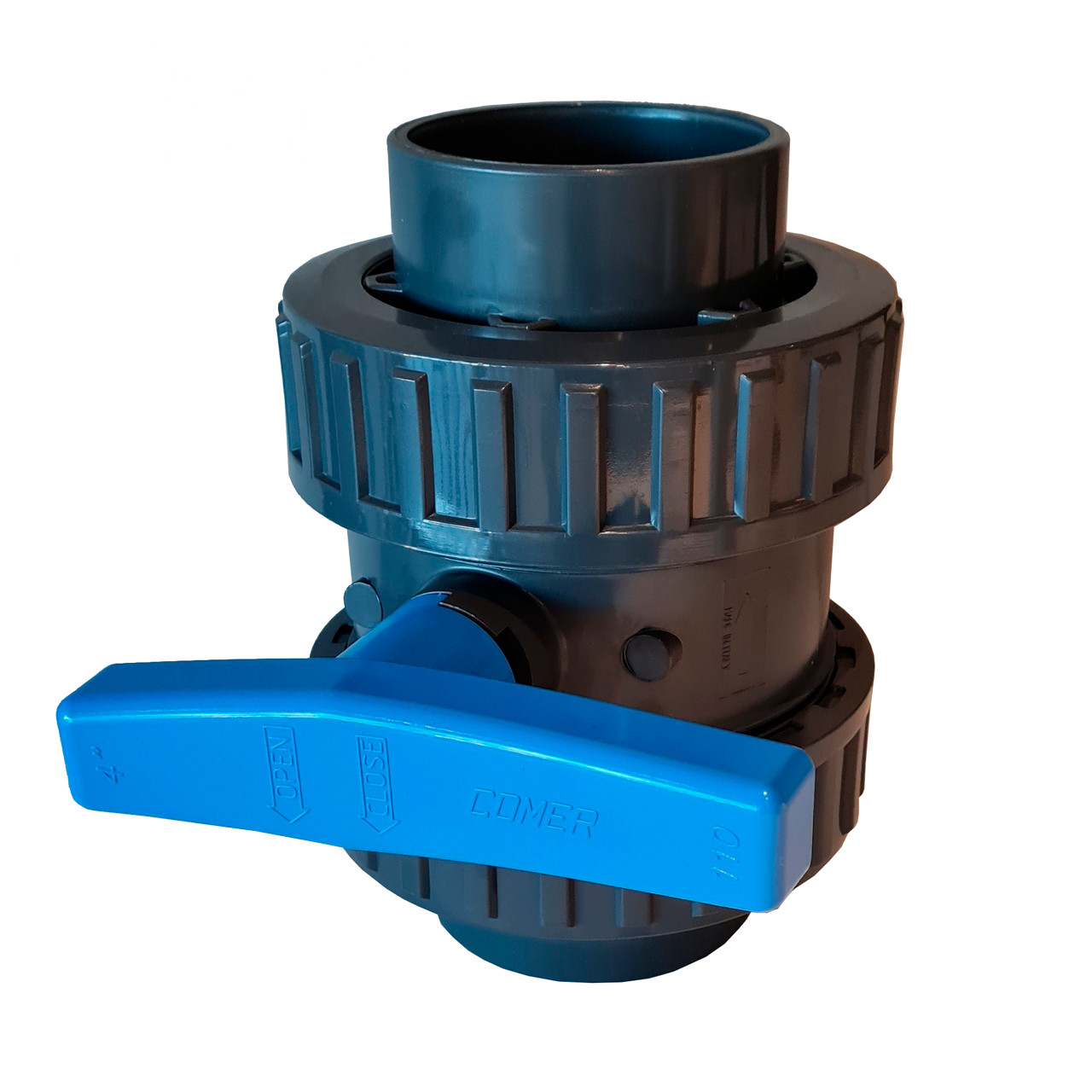

Thumbnail Name PVC Ball Valve Double Union SWJ EPDM
