| Material: | 1. BODY Polypropylene PP-B 2. O-RING Nitrile Rubber (NBR 70) on sizes up to 50mm. 63mm to 110mm have a Lip Seal (NBR45) 3. THRUST RING Polypropylene PP-B 4. SPLIT RING Polyacetal 5. CAP NUT Polypropylene PP-B |
| Material Notes: | High UV resistance |
| Pressure Rating: | 16 bar at 20°C 20mm through to 110mm |
| Pressure Rating Notes: | Pressure must be de-rated if temperature exceeds 20°C ) refer to technical information. |
| Operating Temperature: | Able to withstand sub-zero temperatures to +40°C |
| Standard Seal: | O-RING Nitrile Rubber (NBR 70) on sizes up to 50mm. 63mm to 110mm have a Lip Seal (NBR45) |
| Standard Seal Temperature: | Other temperatures may be available. Refer to our technical department. |
| Alternate Seal: | O-RING Nitrile Rubber (NBR 70) seals available on 63mm to 110mm on request |
| Alternate Seal Temperature: | Able to withstand sub-zero temperatures to +40°C |
| Other Technical Specifications: |
|
Videos
Videos Hide Videos Show Videos
Custom Field
Material 1. BODY Polypropylene PP-B 2. O-RING Nitrile Rubber (NBR 70) on sizes up to 50mm. 63mm to 110mm have a Lip Seal (NBR45) 3. THRUST RING Polypropylene PP-B 4. SPLIT RING Polyacetal 5. CAP NUT Polypropylene PP-B
Pressure 16 bar at 20°C 20mm through to 110mm
On Sale Item F
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW Elysée Brochure.pdf
Technical Manual https://waterworksnz.co.nz/content/product_downloads/Technical Information/Catalogue Technical Information/WW Technical Metric OD Compression Fittings.pdf
Installation Guide 1 https://waterworksnz.co.nz/content/product_downloads/Technical Information/Catalogue Technical Information/WW Technical Metric OD Compression Fittings.pdf
Material Notes High UV resistance
Pressure Rating 16 bar at 20°C 20mm through to 110mm
Pressure Rating Notes Pressure must be de-rated if temperature exceeds 20°C ) refer to technical information.
Operating Temperature Able to withstand sub-zero temperatures to +40°C
Standard Seal O-RING Nitrile Rubber (NBR 70) on sizes up to 50mm. 63mm to 110mm have a Lip Seal (NBR45)
Standard Seal Temperature Other temperatures may be available. Refer to our technical department.
Alternate Seal O-RING Nitrile Rubber (NBR 70) seals available on 63mm to 110mm on request
Alternate Seal Temperature Able to withstand sub-zero temperatures to +40°C
Other Technical Specifications * 50 year service life
* 80 year life expectancy

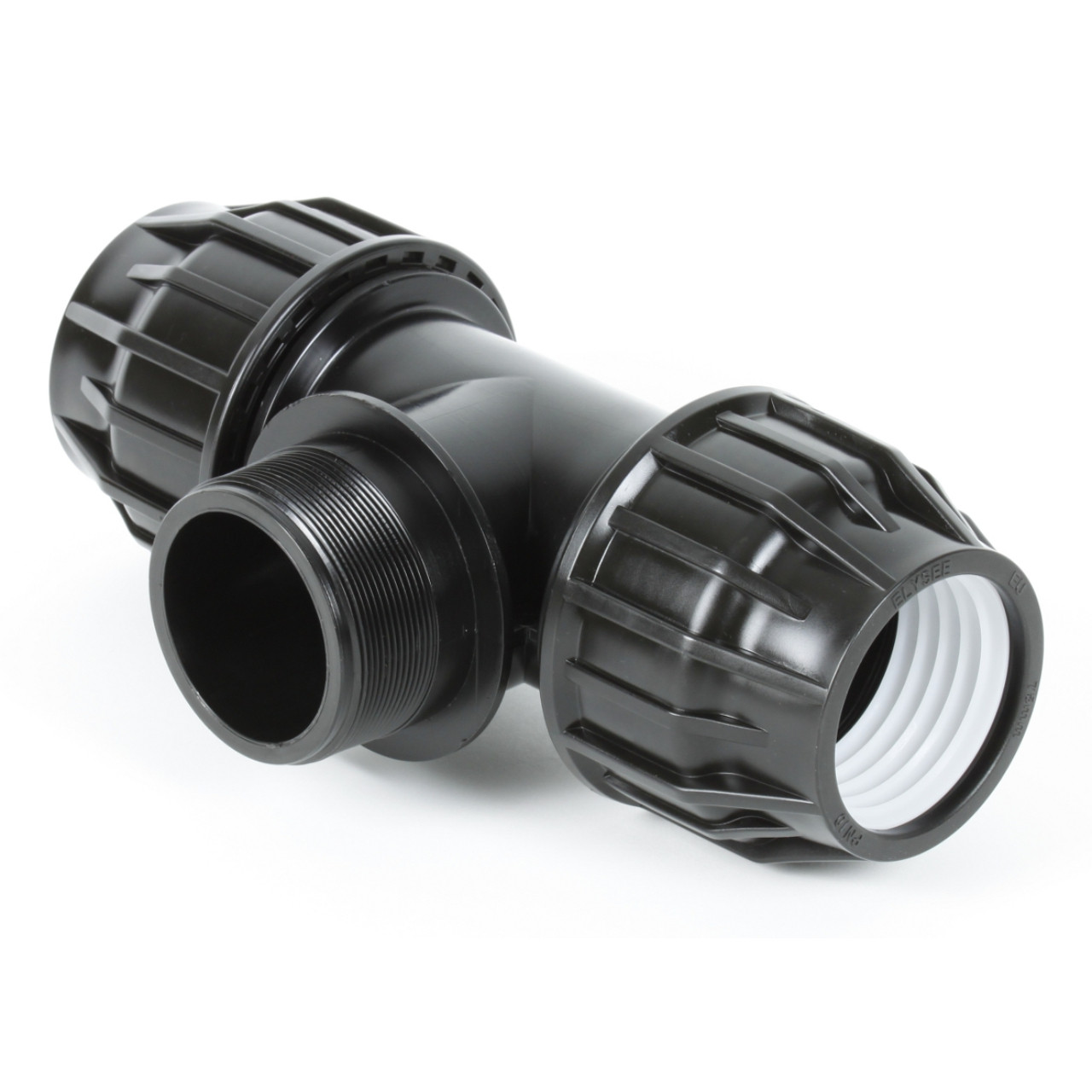

Thumbnail Name Male Tee
Elysée Watermark Approval /content/product_downloads/Certification/Elysee Watermark Approval.pdf
