| Material: | GRPP |
| Pressure Rating: | 80 and 100mm - PN10 (150PSI) |
| Operating Temperature: | 4°C to 40°C |
| Standard Seal: | EPDM |
| Standard Seal Temperature: | Refer to operating temperature |
| Standard Seal Temperature Notes: | Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. |
| Alternate Seal: | Available on an indent basis. Please contact our team. |
| Other Technical Specifications: |
|
Videos
Custom Field
Material GRPP
Pressure 80 and 100mm - PN10 (150PSI)
On Sale Item F
Brochure https://waterworksnz.co.nz/content/Brochure/Waterworks Foot Valves Brochure.pdf
Pressure Rating 80 and 100mm - PN10 (150PSI)
Operating Temperature 4°C to 40°C
Standard Seal EPDM
Standard Seal Temperature Refer to operating temperature
Standard Seal Temperature Notes Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures.
Alternate Seal Available on an indent basis. Please contact our team.
Other Technical Specifications * Gasket - EPDM
* O-Ring - EPDM
* Disc - GRPP
* Metal - 316 Stainless Steel

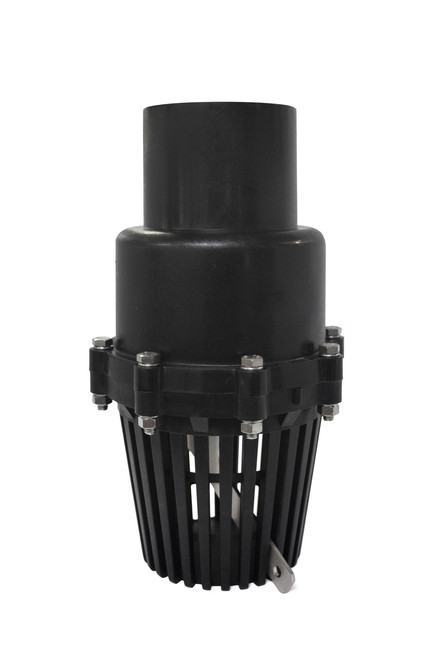

Thumbnail Name Lever Swing Foot Valve
