| Material: | Ductile Cast Iron |
| Material Notes: | Handwheel: GBBFV200 - Cast, GBBFV300 and 400 - Welded |
| Operating Temperature: | -50°C to 150°C |
| Other Technical Specifications: |
|
Videos
Videos Hide Videos Show Videos
Custom Field
Material Ductile Cast Iron
On Sale Item F

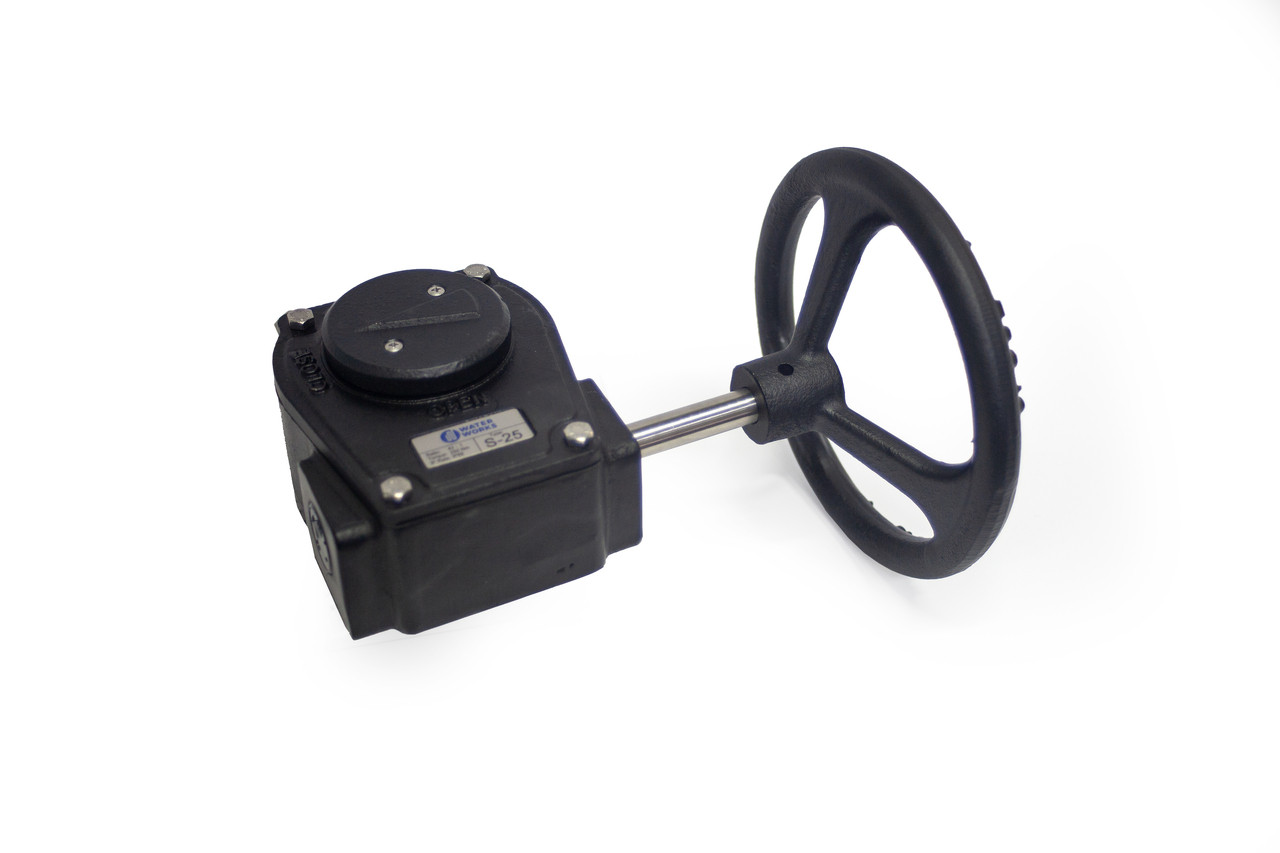

Thumbnail Name Gearbox for Butterfly Valve
Material Notes Handwheel: GBBFV200 - Cast, GBBFV300 and 400 - Welded
Operating Temperature -50°C to 150°C
Other Technical Specifications *Quadrant - Ductile Cast Iron*Worm - Carbon Steel*Shaft - 316 SS*Gasket - Nitrile*O-Rings - Nitrile*Grease - Lithium*Fasteners - 316 SS
Other Technical Specifications 2 *Torque Range - up to 1000Nm*IP68 Rated*Bushings - oil impregnated cooper nickel alloy*Adjustable stopper (± 5°)*Coating - RAL 9005 MAT, 80 Micron*EN ISO5211 Mounting Flange
Technical Manual https://waterworksnz.co.nzcontent/Brochure/WW Valve Gearboxes Technical Manual.pdf
