| Material: | Brass (Nickel Plated)/Stainless Steel Handle |
| Pressure Rating: | PN21 (21Bar/304PSI/2100kPa) |
| Operating Temperature: | -20°C to 120°C |
| Other Technical Specifications: |
|
* Tested & Certified to AS 4617
* AGA approved (AS4617-Type 1)
Certification & Standards
Videos
Custom Field
Material Brass (Nickel Plated)/Stainless Steel Handle
Pressure PN21 (21Bar/304PSI/2100kPa)
On Sale Item F
Certification & Standards * Tested & Certified to AS 4617
* AGA approved (AS4617-Type 1)
Pressure Rating PN21 (21Bar/304PSI/2100kPa)
Operating Temperature -20°C to 120°C
Other Technical Specifications * Full bore
* 100% pressure tested
* Blow proof spindle
* Stainless steel handle
* Body: Brass
* Seat: PTFE
* Ball (15-40mm): Brass
* Ball (50mm): Stainless Steel
* Spindle (15-40mm): Brass
* Spindle (50mm): Stainless Steel
Other Technical Specifications 2 * Bonnet: Brass
* O-Ring: HNBR
* Handle: Stainless Steel
* Lock Nut: Stainless Steel

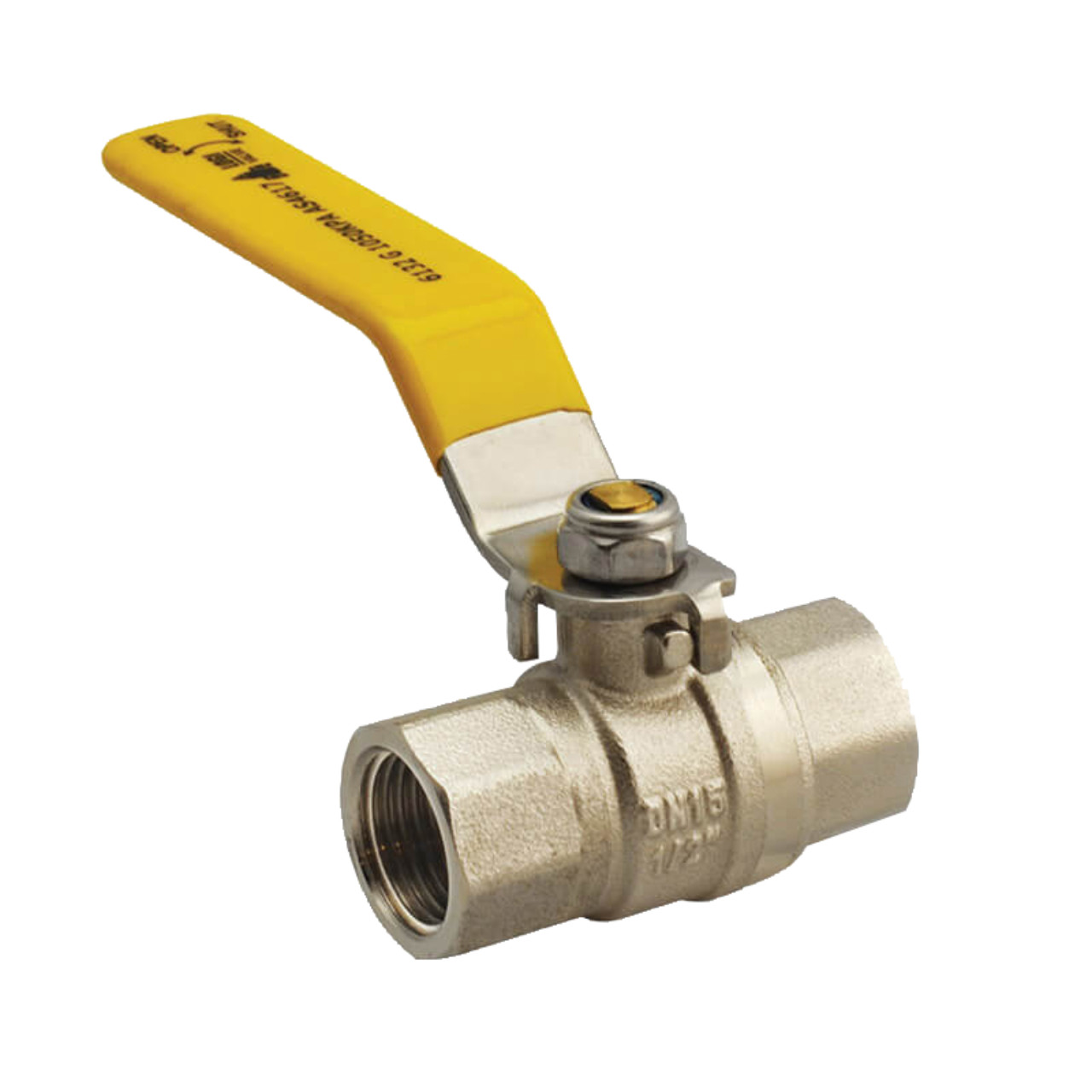

Thumbnail Name Gas Approved Brass Ball Valve S/S Lever Handle
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW Brass Valves Brochure.pdf
