Diaphragm Valve
What is a Diaphragm Valve?

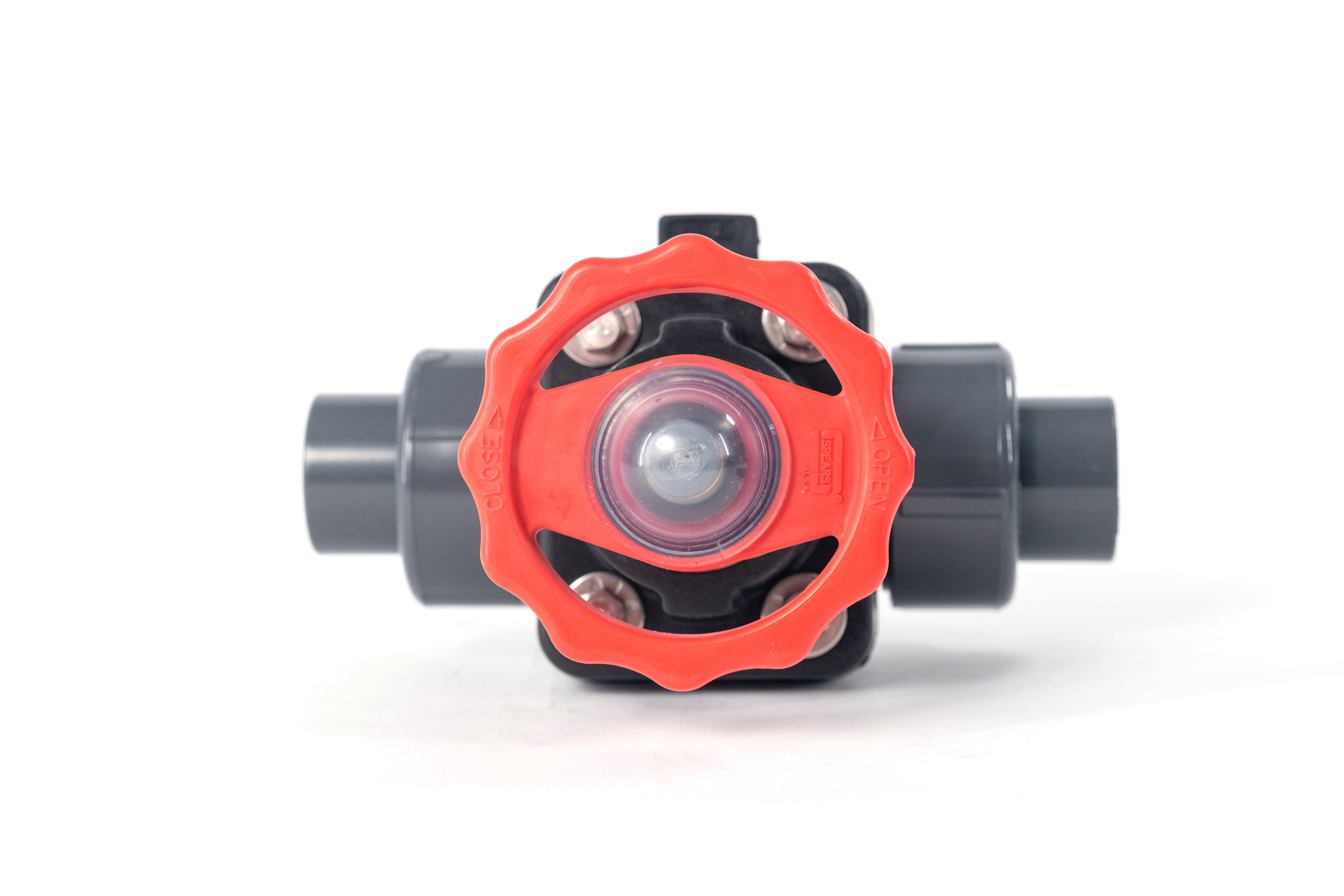

Diaphragm valves are ideal for applications requiring incremental and accurate flow control. Their compact design suits demanding environments, while their smooth wall construction ensures longevity, resistance to corrosion and chemicals and maximises flow. Available in socket end with flanged connection available on pre-order. These valves feature a Built-in position indicator, a polypropylene handwheel, and buttress thread union nuts.
Technical Specifications
1. Certifications: ASTM D 1784
2. Max. Operating Temperature: 60°C
3.Pressure Rating:
15mm: 50mm: 235 PSI
65mm: 100mm and all flanged valves: 150 PSI
150mm: 100 PSI
4. Applications: Typically used for incremental flow control in industries such as general water reticulation, food and pharmaceutical, water and sewage treatment and manufacturing.
Download the Brochure
Diaphragm valves are ideal for applications requiring incremental and accurate flow control. Their compact design suits demanding environments, while their smooth wall construction ensures longevity, resistance to corrosion and chemicals and maximises flow.

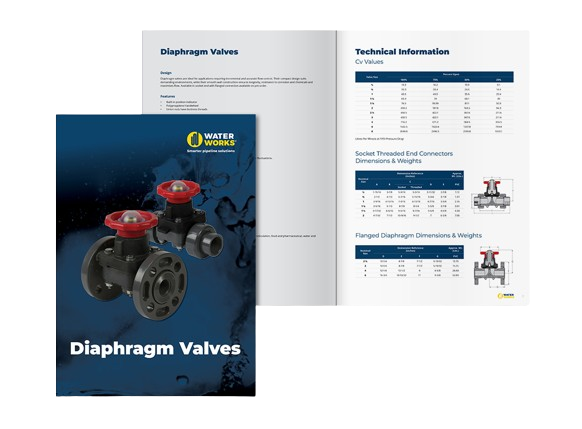

Discover the Diaphragm Valve brochure and learn more about this bracket range, its specifications, recommended installation distance and more.
Watch the Specification Video
In this video we take a closer look at three types of Schedule 80 PVC Industrial Diaphragm Valves. These valves are designed for a variety of applications and industries, offering reliability, durability, and efficiency. Let's dive into the specifics of each valve and their unique features and benefits.
View the range

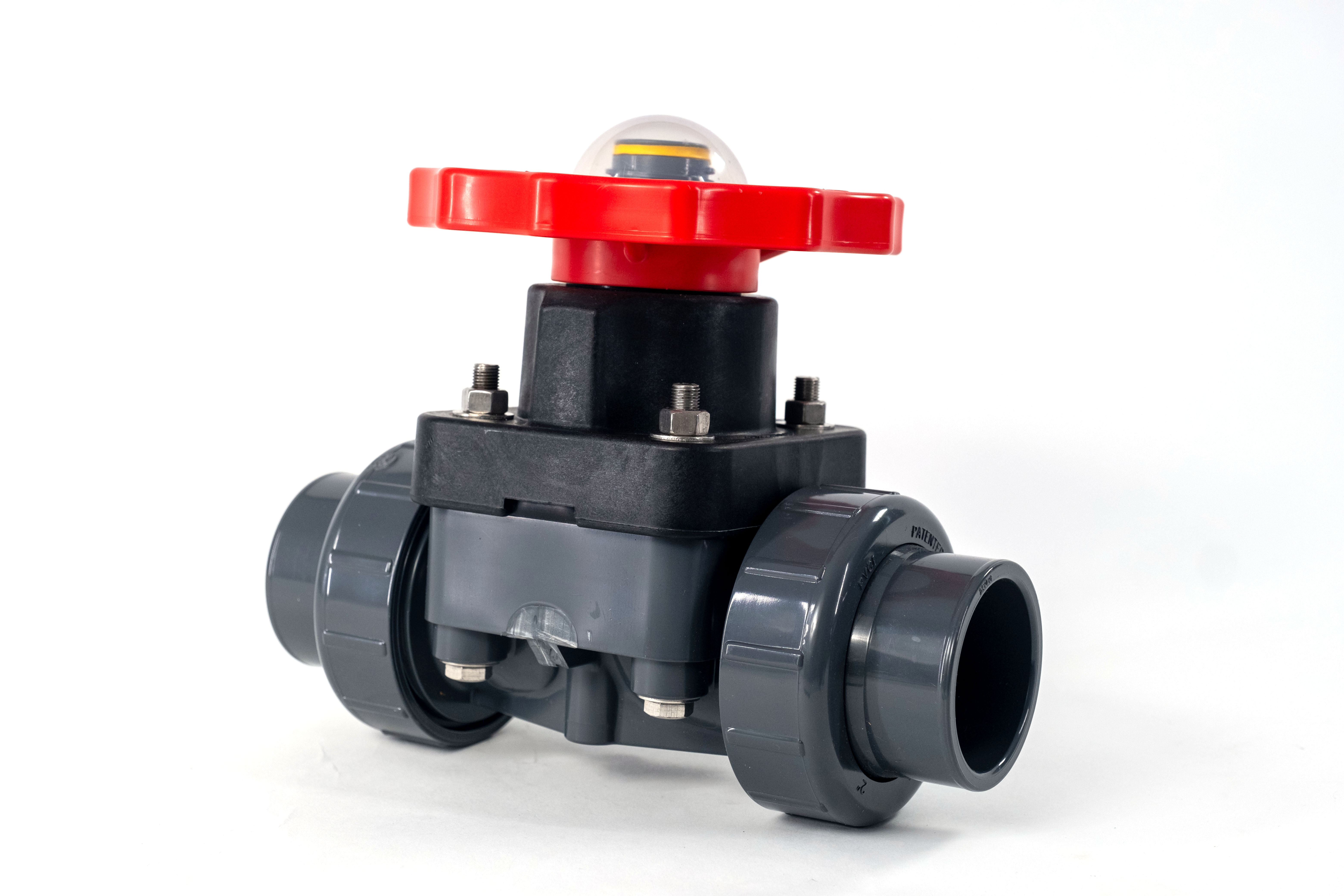

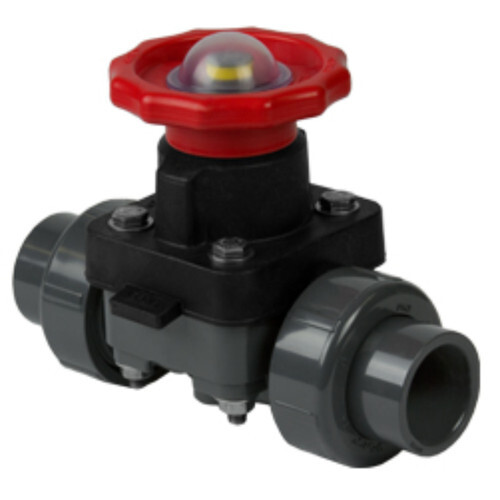

Sch80 PVC True Union 2000 Industrial Diaphragm Valve SOC NPT PVC EPDM
Sch80 PVC Diaphragm Valve FKM SOC NPT EPDM PTFE
Sch80 PVC True Union 2000 Industrial Diaphragm Valve Flanged ANSI 150 PVC EPDM
