| Material: | CPVC/FKM |
| Material Notes: | Valve seals are FKM. To protect CPVC from deterioration from UV radiation, CPVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with CPVC. Oil-based paints should not be used. |
| Pressure Rating: | 235 PSI |
| Pressure Rating Notes: | Pressure rating applies at 23°C. |
| Operating Temperature: | 4°C to 93°C |
| Standard Seal: | FKM |
| Standard Seal Temperature: | Refer to operating temperature |
| Standard Seal Temperature Notes: | Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind, as temperatures increase thermal expansion will increase and bracket spacing will decrease. The pressure capability will also need to be de-rated. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details. |
| Other Technical Specifications: |
|
* ASTM F 1970
* ASTM D 1784
* ABS
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material CPVC/FKM
Pressure 235 PSI
On Sale Item F
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW Spears Brochure.pdf
Technical Manual https://waterworksnz.co.nz/content/product_downloads/Technical Information/Catalogue Technical Information/WW Technical Sch.80 CPVC Pipe & Fittings.pdf
Certification & Standards * ASTM F 1970
* ASTM D 1784
* ABS
Installation Guide 1 https://waterworksnz.co.nz/content/product_downloads/Installation Guide/WW PVC Cement Set & Cure Times.pdf
Material Notes Valve seals are FKM. To protect CPVC from deterioration from UV radiation, CPVC installed outdoors should be either insulated or painted with a light coloured acrylic or latex paint that is chemically compatible with CPVC.
Material Notes 2 Oil-based paints should not be used.
Pressure Rating 235 PSI
Pressure Rating Notes Pressure rating applies at 23°C.
Operating Temperature 4°C to 93°C
Standard Seal FKM
Standard Seal Temperature Refer to operating temperature
Standard Seal Temperature Notes Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures. Also, please keep in mind,
Standard Seal Temperature Notes 2 as temperatures increase thermal expansion will increase and bracket spacing will decrease. The pressure capability will also need to be de-rated. Please refer to the PVC Pressure Pipe & Fittings Technical Manual for further details.
Other Technical Specifications Valve union nuts have buttress threads
* Valve seats are O-ring type
* Seal carriers are Safe-T-Blocked
* Valve components are replaceable

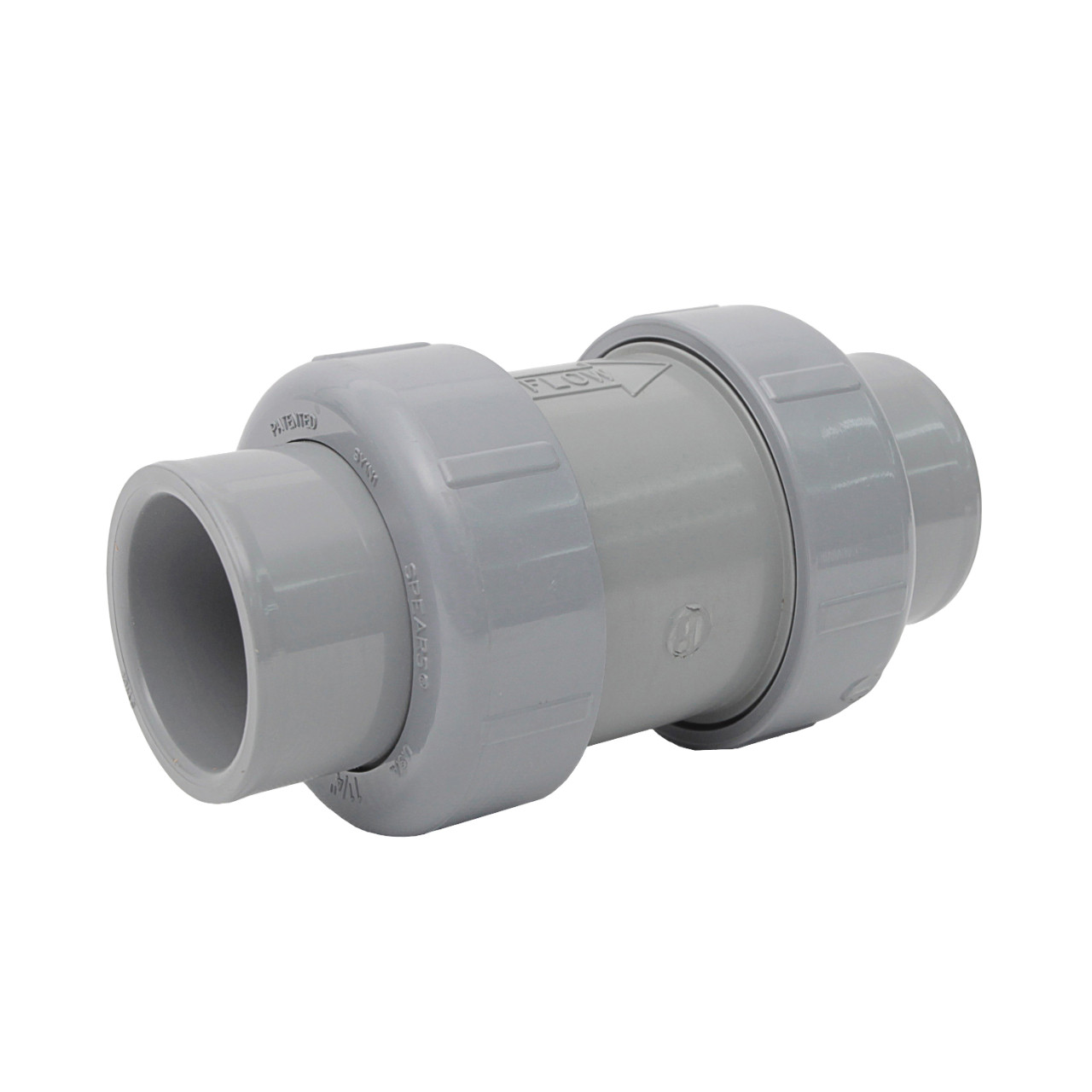

Thumbnail Name TU 2000 Ind. Ball Check Valve SOC NPT CPVC FKM
