| Material: | uPVC |
| Material Notes: | Some deterioration may occur when exposed to UV radiation. |
| Pressure Rating: | Sizes 50-150mm - PN10 (150PSI), Sizes 200-300mm - PN6 (87PSI) |
| Pressure Rating Notes: | The pressure rating must be adjusted if the fittings are to be used at elevated temperatures above 20°C. Refer to PVC Pressure Pipe & Fittings Technical Manual for temperature de-rating factors. |
| Operating Temperature: | 4°C to 40°C |
| Standard Seal: | EPDM |
| Standard Seal Temperature: | Refer to operating temperature |
| Standard Seal Temperature Notes: | Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures |
| Alternate Seal: | Available on an indent basis. Please contact our team. |
| Other Technical Specifications: |
|
* NSF Approved
* BS EN ISO 1452-4:2009
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material uPVC
Pressure Sizes 50-150mm - PN10 (150PSI), Sizes 200-300mm - PN6 (87PSI)
On Sale Item F
Certification & Standards * NSF Approved
* BS EN ISO 1452-4:2009
Material Notes Some deterioration may occur when exposed to UV radiation.
Pressure Rating Sizes 50-150mm - PN10 (150PSI), Sizes 200-300mm - PN6 (87PSI)
Pressure Rating Notes The pressure rating must be adjusted if the fittings are to be used at elevated temperatures above 20°C. Refer to PVC Pressure Pipe & Fittings Technical Manual for temperature de-rating factors.
Operating Temperature 4°C to 40°C
Standard Seal EPDM
Standard Seal Temperature Refer to operating temperature
Standard Seal Temperature Notes Maximum temperature is 60°C. Minimum and maximum temperatures are not recommended for continuous operation or for applications of continuous fluctuations to these temperatures
Alternate Seal Available on an indent basis. Please contact our team.

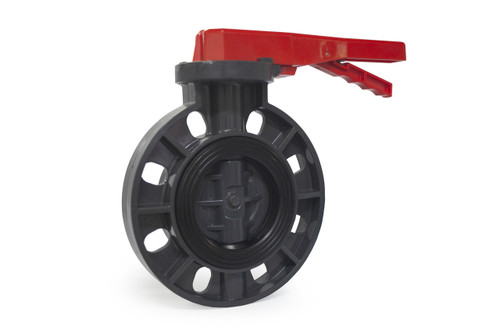

Thumbnail Name uPVC Butterfly Valve - Lever
Other Technical Specifications * Seat - EPDM
* Stem, Spring, and Hinge Pin - 316 Stainless Steel
* Lever handle - uPVC
* Flange configuration - Universal (ANSI 150, DIN, Table D/E)
* Disc - uPVC
* O-Ring - EPDM
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/Butterfly PVC Valve Feature Brochure.pdf
