| Material: | 1. BODY Polypropylene Copolymer PP-B 2. REINFORCING RING Stainless Steel 3. BOLTS Stainless Steel 4. O-RING Elastomeric rubber NBR70 |
| Material Notes: | Reinforcing rings on threaded offtakes 1 1/4" BSP and larger |
| Pressure Rating: | 16 bar at 20°C for up to 63mm 10 bar at 20°C 75mm to 110mm 6 bar at 20°C 125mm to 200mm |
| Pressure Rating Notes: | Pressure rating must be de-rated if used above 20°C |
| Operating Temperature: | Able to withstand sub-zero temperatures to +40°C |
| Standard Seal: | Elastomeric rubber NBR70 |
* BS6920:2000
Certification & Standards
Videos
Videos Hide Videos Show Videos
Custom Field
Material 1. BODY Polypropylene Copolymer PP-B
2. REINFORCING RING Stainless Steel
3. BOLTS Stainless Steel
4. O-RING Elastomeric rubber NBR70
Pressure 16 bar at 20°C for up to 63mm
10 bar at 20°C 75mm to 110mm
6 bar at 20°C 125mm to 200mm
On Sale Item F
Brochure https://waterworksnz.co.nz/content/product_downloads/Product Brochures/WW Elysée Brochure.pdf
Technical Manual https://waterworksnz.co.nz/content/product_downloads/Technical Information/Catalogue Technical Information/WW Technical Tapping Saddles & Bands.pdf
Certification & Standards * BS6920:2000
Material Notes Reinforcing rings on threaded offtakes 1 1/4" BSP and larger
Pressure Rating 16 bar at 20°C for up to 63mm
10 bar at 20°C 75mm to 110mm
6 bar at 20°C 125mm to 200mm
Pressure Rating Notes Pressure rating must be de-rated if used above 20°C
Operating Temperature Able to withstand sub-zero temperatures to +40°C
Standard Seal Elastomeric rubber NBR70

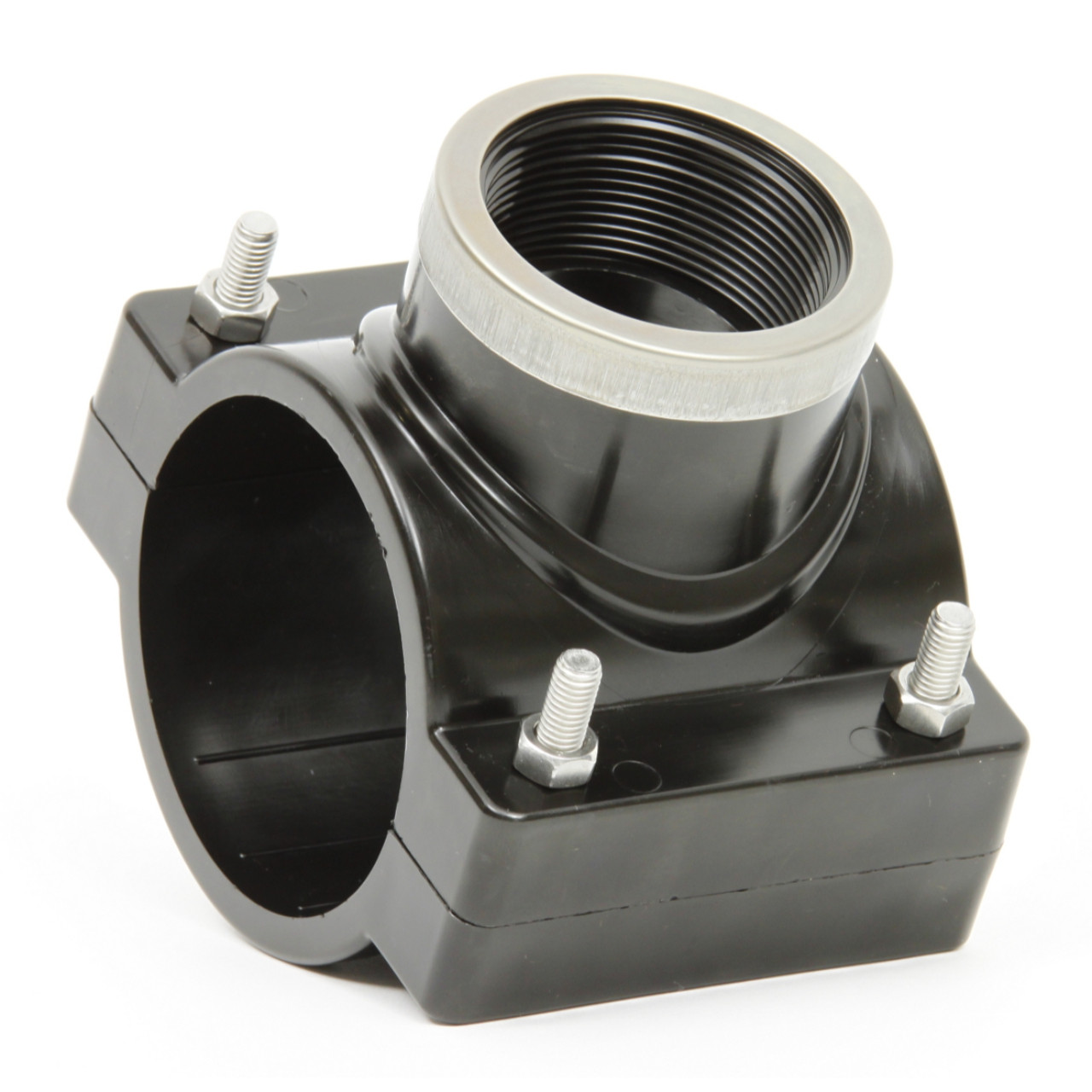

Thumbnail Name BSP Tapping Saddle - 4 Bolt
